Overview of Controller

Available operations in Controller

Press Controller to display the Controller Machine Setting Menu screen. The Controller Machine Setting Menu screen enables you to check various settings.

Tips

  • If the Image Controller is not working correctly, the Controller on the MACHINE screen appears shaded to show inactivity.

Displaying Controller Machine Setting Menu Screen

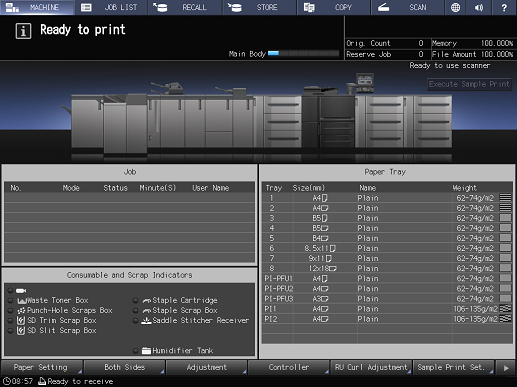

  1. Press the MACHINE tab to display the MACHINE screen.

  2. Press Controller on the MACHINE screen.

    The Controller Machine Setting Menu screen is displayed.

Reference

Controller Machine Setting Menu Screen

You can set the following functions.

Name

Description

Reference

Report Type

Outputs Configuration Page Print, PS Demo Page Print, PCL Font List, and PS Font List.

Report Type

Direct Print Setting

Specifies default settings including Duplex for a job which has no setting, such as one using the direct print function without a printer driver.

Direct Print Setting

Select Printer Setting

Assigns a default output format number to each port and reflects it to Direct Print Setting.

Select Printer Setting

Driver Print Setting

Specifies Convert Paper Size, Page Number Insert Sheet, Number of Tabs, and Perfect Bind Spine Width.

Driver Print Setting

Spool Print Jobs in HDD before RIP

Specifies job spool setting from Auto, Enable, or Disable.

Spool Print Jobs in HDD before RIP

I/F Timeout

Specifies the time until a communication timeout occurs.

I/F Timeout

Plug-in Form Password

Inputs a password for the form function for a PS Plug-in driver.

Plug-in Form Password

Scan Setting

Sets a time to delete the stored data automatically. Define rules about the automatically created file name.

Scan Setting

PDF/VT-2 Shared Folder

Specify whether to enable the PDF/VT-2 shared folder.

PDF/VT-2 Shared Folder

File Transmission Setting

Select a destination to send the RIPed file to.

File Transmission Setting
