[FS Main Tray Replace]
Overview
Lower the position of the Main tray when attaching or detaching Banner Output Tray Unit MK-761 to or from the Output Tray OT-512.
NOTICE
- Before attaching or detaching Banner Output Tray Unit MK-761, always display the dialog box, and lower the Main tray.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires the following combinations of optional devices. Output Tray OT-512 Banner Output Tray Unit MK-761 | ||
Required items | - | ||
Setting items | [FS Main Tray Replace] | The dialog box is displayed, and the Main tray lowers (approximately 5 cm / 1.97"). | |
Remarks | The option configuration for attaching Banner Output Tray Unit MK-761 is limited. For details, refer to Paper output options. | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] | ||
Procedure
This section describes how to mount the output extension tray (Banner Output Tray Unit MK-761) to Output Tray OT-512.
1

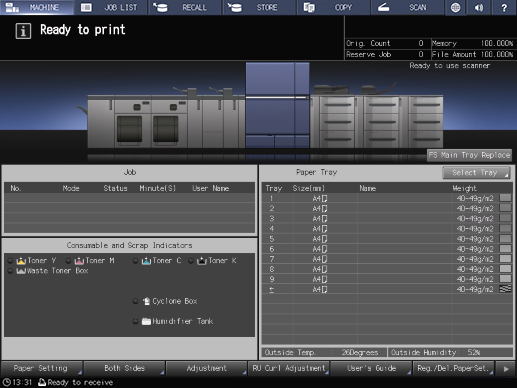

Press [FS Main Tray Replace].

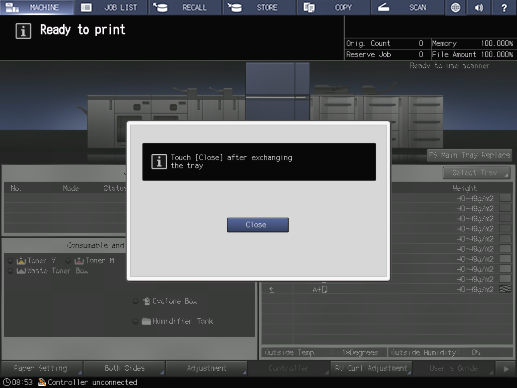

The dialog box is displayed, and the Main tray lowers (approximately 5 cm / 1.97").
2

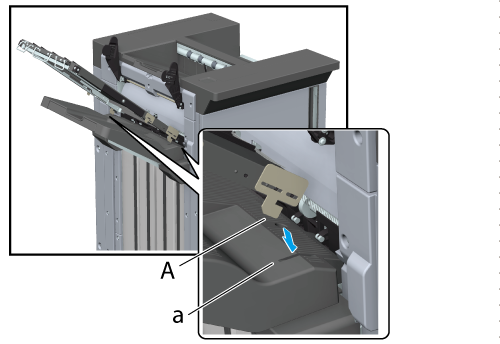

Insert the bracket (A) of Banner Output Tray Unit MK-761 into the slot (a) of the Main tray.
3

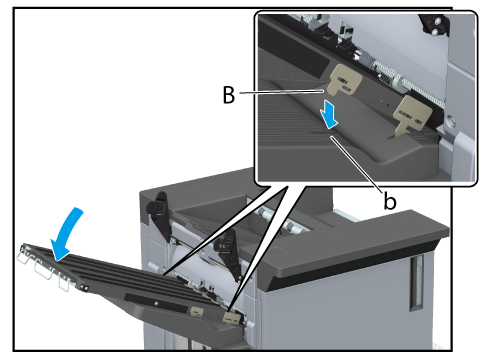

Insert the bracket (B) of Banner Output Tray Unit MK-761 into the slot (b) of the Main tray while making adjustments by hand as needed.
4

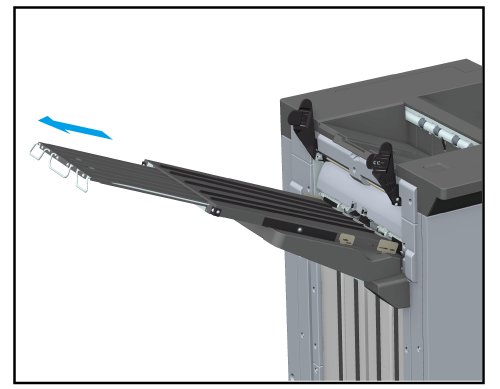

Extend the Tray extension of Banner Output Tray Unit MK-761 to suit the size of the output paper.
5
Press [Close] in the dialog box.
The Main tray lifts and returns to the original position.
