[RECALL] Screen
Overview

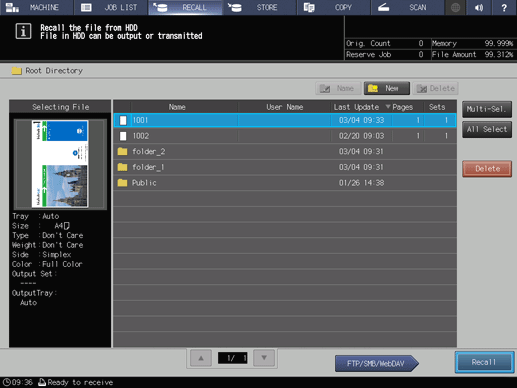

The [RECALL] screen displays HDD store jobs.
On this screen, you can perform the following operations for an HDD store job.
- Print a job
- Send a job to the computer
- Recall a job as a hold job
- Delete a job
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [RECALL]?.
Tips
- You can also create folders or boxes to store HDD store jobs, or delete them.
Specifications
Category | Print Workflow | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Name] | Renames an existing folder or box. For details, refer to [Name]. | |
[New] | Creates a new folder or box. For details, refer to [New]. | ||
[Delete] | This is [Delete] on the right side of [New]. Deletes a folder or box. An HDD store job cannot be deleted using this key. For details, refer to [Delete]. | ||
[Multi-Sel.] | To select multiple HDD store jobs, first press this key, and select them. Press [Multi-Sel.] again to release [Multi-Sel.]. Folders or boxes cannot be selected. | ||
[All Select] | Selects all of the HDD store jobs. Press [Multi-Sel.] to release [All Select]. Folders or boxes cannot be selected. | ||
[Delete] | This is [Delete] under [All Select]. When deleting an HDD store job, select the target job, and press this key. If necessary, you can select multiple jobs and delete them. | ||
[Recall] | Recalls an HDD store job. There are 3 methods to recall a job. For details, refer to [Recall]. | ||
[FTP/SMB/WebDAV] | Sends an HDD store job to the [FTP], [SMB], or [WebDAV] destination that was set on the [SCAN] screen. For details, refer to the following. [FTP]: [SMB]: [WebDAV]: | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [RECALL] | ||
Procedure
Delete an HDD store job.
1
Display the storage location of the HDD store job to be deleted.
Select the location (Root Directory, folder, or box) that contains the target HDD store job. If the target folder or box is password-protected, enter the password.
2
Select the job to delete.
To select multiple jobs, press [Multi-Sel.], and select the target jobs.
To select all of the jobs, press [All Select].
3
Press [Delete] under [All Select].

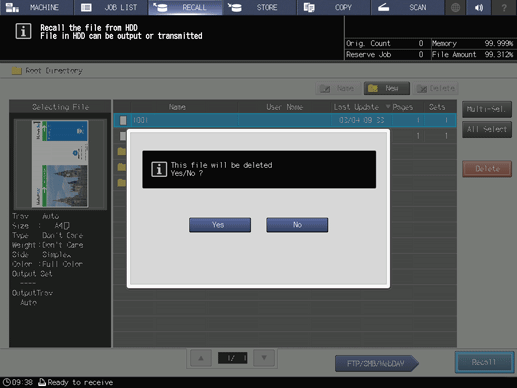

The confirmation dialog box is displayed.
4
Press [Yes].
