Setting printer driver

Menu item

Set the following items in the printer driver.

Menu item

Also, set the following on the Print window of Application.

When setting in the printer driver, make sure that there are no previous settings left in each item in the tabs Layout, Finishing, Cover, etc.

Open the original data with the application, and then click Print on the File menu.
Select the printer to use for printing and click Properties.

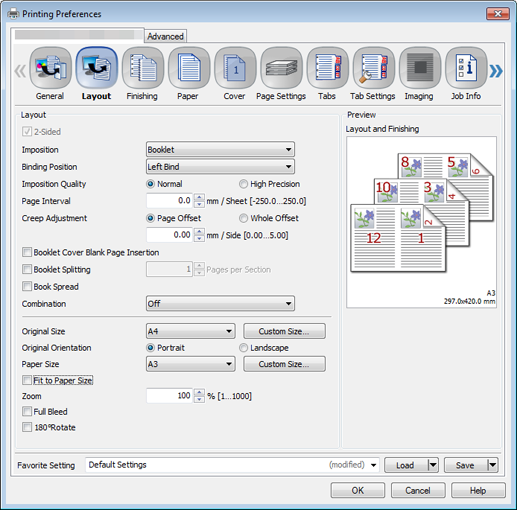

Click the Layout tab, and then set the following items.
Example:
Item
Setting
Imposition
Booklet
Binding Position
Left Bind
Original Size
A4
Original Orientation
Portrait
Paper Size
A3
- supplementary explanation If the specified settings are not displayed on the preview, click Acquire Device Information on the Configure tab to obtain the device information.
Click the Finishing tab, and then set Fold and Multi Half-Fold Details.
Example:
Item
Setting
Fold
Multi Half-Fold
Multi Half-Fold Details
Select 2 Positions, and select the Trim check box.
Click the Paper tab, and then click Acquire Tray and Paper Data.
When the tray and paper data is acquired, a green checkmark is displayed.
- supplementary explanationIf the tray and paper data could not be acquired, a red x checkmark is displayed. Check if an optional paper tray is correctly mounted.
Select a tray in Paper Tray, and then click OK.
Example: Here, the explanation assumes that papers (A3: Short Edge) have been set in Tray 2.

Item	Setting
Fold	Multi Half-Fold
Multi Half-Fold Details	Select 2 Positions, and select the Trim check box.

On the Print screen, enter the Copies and click Print.
Printing starts. When the printing is completed, go to Checking the finishing, and check the finishing of the printed document.
