Behavior during Network Disconnection

If the Real-time Remote Panel is disconnected from the network, the behavior of the machine varies depending on the operations performed at the time and its status.

The behaviors can be following two types:

Displays the "restart warning" screen
Displays the default screen (the one selected from Utility Menu by selecting User Setting - System Setting - Default Screen Setting)

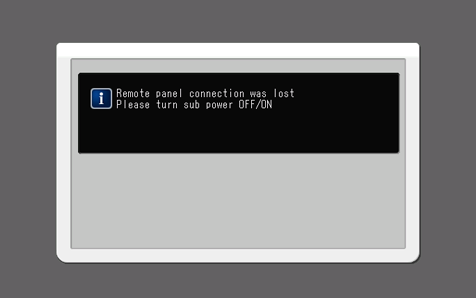

The restart warning screen is displayed in the following case.
When the PRINT MODE or Scan Meas. screen is displayed from the Chart Adjustment screen of Both Sides Adjust and the network is disconnected, the restart warning screen is displayed.
Any operation using the remote panel, main panel,or mouse/keyboard connected to the USB port cannot be performed when this screen is displayed.
- supplementary explanationTurn off the sub power switch of the main body to display the shut off warning screen. Turn on the sub power switch again to continue using the machine.
- supplementary explanationOnce the Real-time Remote Panel is reconnected, the restart warning screen is closed.

The default screen (the one selected from Utility Menu by selecting User Setting - System Setting - Default Screen Setting) is displayed in the following case.

Unless the restart warning screen is displayed, the default screen is displayed. However, if the machine is in one of the following states, the appropriate operation is performed before the default screen is displayed.

Status	Function
Job Ticket Edit or Page Edit is in progress	Cancels the editing
Hold Job/HDD Recall/HDD Store is selected	Initializes the selection of function buttons and jobs
User Authentication/Account Track is in progress	Forces the user to log-off regardless of the log-in status
SCAN screen is selected	Initializes the selection of destinations and job settings
External App Connection is in progress	Initializes the settings concerning the connected external applications

Tips

If the service call failure is occurring, the Service Call screen continues to be displayed even when the Real-time Remote Panel is disconnected.
If the Real-time Remote Panel is disconnected and the default screen is displayed after a dialog, such as the one for confirmation, is open, that dialog will not be opened again.
