Real-time Remote Panel (VNC Viewer): How to Use

To use the Real-time Remote Panel in the VNC Viewer, enter the IP address of the connection destination (machine) and the VNC password on the connection setting screen of the application.

The VNC password is required to be set in advance. For details, refer to Real-time Remote Panel (VNC Viewer): Setup.

The following example shows how to use Real-time Remote Panel with VNC Viewer for iPad, Remoter VNC.

1. Start Remoter VNC.

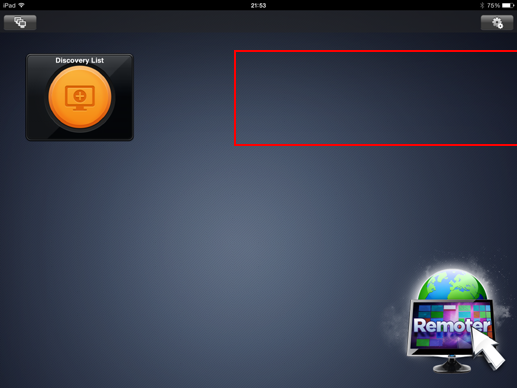

2. Tap Discovery List.

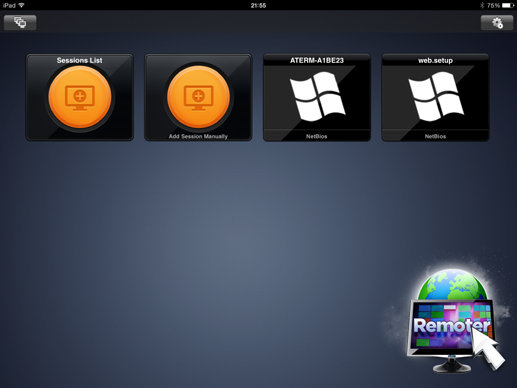

3. Tap Add Session Manually.

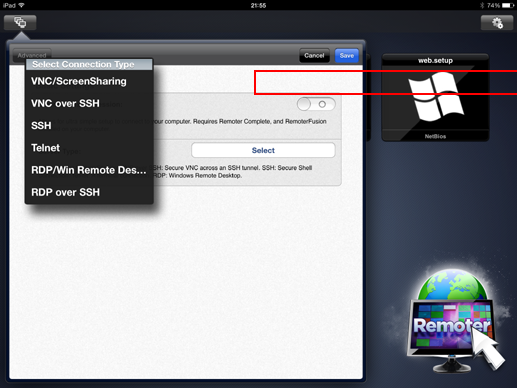

4. Tap Select of Server Type, and then select VNC/ScreenSharing.

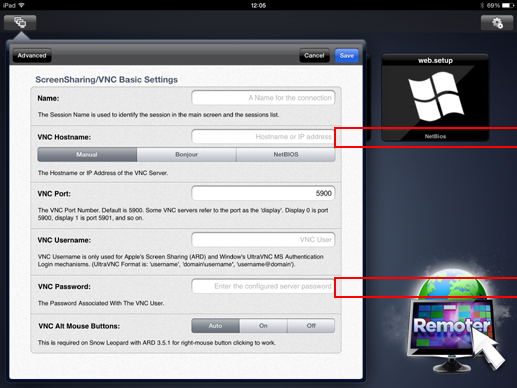

5. Enter the IP address of the machine for VNC Hostname, and the VNC password for VNC Password.

6. Tap Save in the upper right of the window.

   The connection to the machine is completed. The profile selection screen is displayed.

7. Select the profile of the touch panel of the machine, and then enter your password in the login screen.

8. Tap Unlock.

   Remote Panel is displayed.
