[E-Mail Registration]
Overview
Register the E-mail address.
This function allows you to newly register, change, or delete a destination.
NOTICE
- The authentication operation is always required to display the [Machine Manager Setting] screen. Pressing [Machine Manager Setting] displays the password entry screen. Enter "admin" in User Name, and the 8-character administrator password in Password.
- Do not use the network scanner function while registering scan address data.
Tips
- You can only enter the characters and symbols that can be displayed on the control panel.
- If you violate the character limitation or do not fill in a required field, [the settings are wrong] is displayed. Click [Back], and re-enter the value.
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | - | |
Printer driver | - | ||
Application | Web Utilities | ||
Required options | - | ||
Required items | - | ||
Setting items | [Registered Name] | Enter the name of the destination. This item can be specified using up to 24 single-byte characters (12 double-byte characters). The registered name is displayed on the [Registered List] screen. | |
[Reference Name] | Enter text to search for an address. This item can be specified using up to 24 single-byte characters (12 double-byte characters). | ||
[Address] | Sets the E-mail address. This item can be specified using up to 256 single-byte characters. | ||
[Daily Use Registration] | Select this check box to register a destination as a frequently used one. | ||
Remarks | - | ||
Reference | For details about how to register an E-mail address, refer to [Input Address]. | ||
Screen access | Web Utilities - [Machine Manager Setting] - [Scan transmission setting] | ||
Procedure (Changing the Registered Contents of Address Data)
1
Click [Entry List] of the Item you want to change the registered contents.

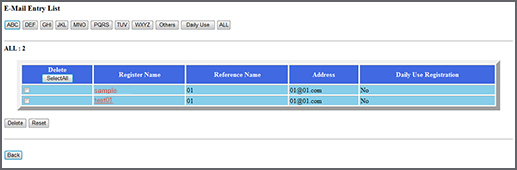

The [Registered List] screen is displayed.
2
Click the registered name of the item you want to change.

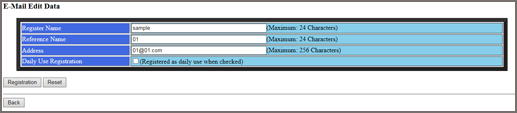

The Edit screen is displayed.
3
Enter the contents to change, and click [Registration].
The registration completion screen is displayed.
Procedure (Deleting the Registered Address Data)
1
Click [Entry List] of the Item you want to delete.
The [Registered List] screen is displayed.
2
Select the check box of the registered data you want to delete.
Multiple registered data items can be selected.
To delete all items, click [Select All].
3
Click [Delete].
The confirmation screen is displayed.
4
Click [Yes].
