2 Position Staple
Overview

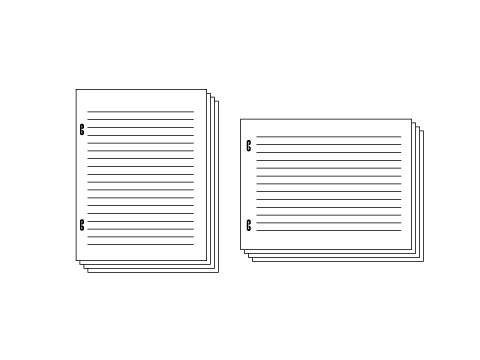

Copies are stapled parallel to the paper at 2 positions on the left side. This function creates a product with a form similar to a booklet, so it useful for stapling documents with a large number of pages.
Tips
- The available paper size or number of sheets varies depending on the mounted optional devices. For details, refer to Optional Part Names and Specifications for Paper Output.
- The stapled sheets are output to the Main tray.
Tips
- PostInserter PI-502: The Lower tray can be used as a paper tray. The Upper tray is not available.
- FoldingUnit FD-503: The Upper tray can be used as a paper tray. The Lower tray is not available.
Specifications
Category | Print Workflow | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires one of the following optional devices. Finisher FS-541 with PostInserter PI-502 mounted FoldingUnit FD-503 with Finisher FS-541 mounted in the next stage | ||
Required items | - | ||
Setting items | Mode selection key  | Used to select the staple mode. | |
Mode selection LED  | Staples the left side of paper at 2 positions. Selecting the 2 Position Staple mode lights up this LED. | ||
Start/Stop key  | Starts or stops processing. | ||
Remarks | - | ||
Reference | - | ||
Screen access | - | ||
Procedure (for PostInserter PI-502)
1

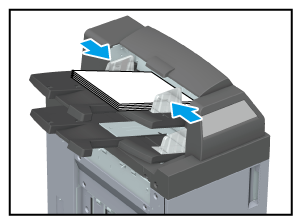

Load paper into the Lower tray of PostInserter PI-502, and align the Side guides with the paper.
Load paper with the front side up.
2

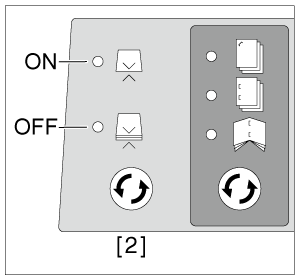

Press the Staple mode selection key [2] on the Post inserter control panel to turn on the 2 Position Staple mode LED lamp [1].
3
Press the Start/Stop key [3] to start processing.
Procedure (for FoldingUnit FD-503)
1

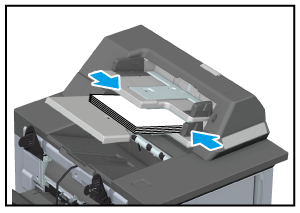

Load paper into the Upper tray of Post inserter of FoldingUnit FD-503, and align the Side guides with the paper.
Load paper with the front side up.
2

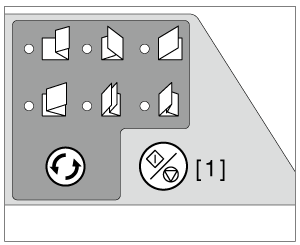

Press the Staple selection key [1] on the Post inserter control panel to turn on the 2 Position Staple mode LED lamp.
Punch holes can be combined with Corner Staple or 2 Position Staple.
3
Press the Start/Stop key [1] to start processing.
If the machine stops because double feeding was detected but did not actually occur, press Multi-feed detection key [2] to light up the Double Feed Detection OFF indicator LED.
To stop processing, press Start/Stop key [1] again.
