Fold & Staple
Overview

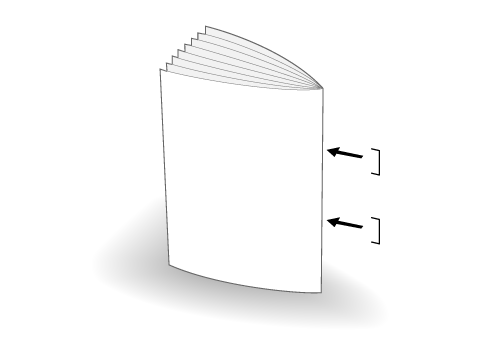

The paper is folded in half and stapled at 2 positions in the center. This function, which creates a magazine-like form, is available to create a spread document.
To manually perform Saddle Stitch or Half-Hold for a booklet original, sort pages of the original in the reverse order after referencing the following.
Booklet original | Reverse sorting |
|---|---|
 |  |
Tips
- The available paper size or number of sheets varies depending on the mounted optional devices. For details, refer to Optional Part Names and Specifications for Paper Output.
- The folded and stapled sheets are output to the Folder tray.
Tips
- PostInserter PI-502: The Lower tray can be used as a paper tray. The Upper tray is not available.
- FoldingUnit FD-503: The Upper tray can be used as a paper tray. The Lower tray is not available.
Specifications
Category | Print Workflow | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires one of the following optional devices. Finisher FS-541 with PostInserter PI-502 and Saddle Stitcher SD-510 mounted FoldingUnit FD-503 with SaddleStitcher SD-506 mounted in the next stage FoldingUnit FD-503 with Saddle Stitcher SD-513 mounted in the next stage | ||
Required items | - | ||
Setting items | Mode selection key  | Selects the Fold & Staple mode. | |
Mode selection LED  | Folds and staples paper. Selecting the Fold & Staple mode lights up this LED lamp. | ||
Start/Stop key  | Starts or stops processing. | ||
Remarks | - | ||
Reference | - | ||
Screen access | - | ||
Procedure (for PostInserter PI-502)
1
Load paper into the Lower tray of PostInserter PI-502, and align the Side guides with the paper.
To load paper, turn up the surface that will be the outside once it is stapled.
2
Press the Staple mode selection key [2] on the Post inserter control panel to turn on the Fold & Staple mode LED lamp [1].
3

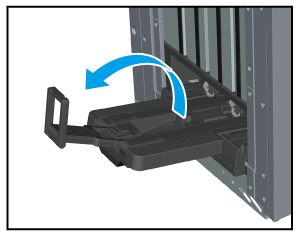

Open the Paper delivery handle of Folder tray.
4
Press the Start/Stop key [3] to start processing.
Procedure (for FoldingUnit FD-503)
1
Load paper into the Upper tray of Post inserter of FoldingUnit FD-503, and align the Side guides with the paper.
To load paper, turn up the surface that will be the inside once it is stapled.
2
Press the Staple selection key [1] on the Post inserter control panel to turn on the Fold & Staple mode LED lamp.

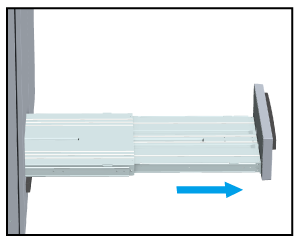

For Fold & Staple, pull out Conveyance belt.
NOTICE

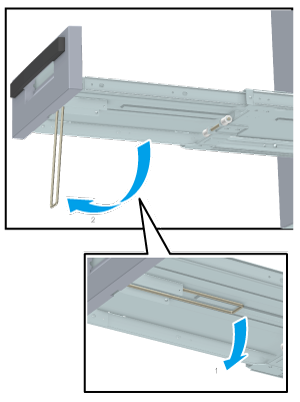

- When using the Conveyance belt of SaddleStitcher SD-506, be sure to set up the stand under the tray.
- Each output tray has a capacity limit. Be careful not to exceed the limit, otherwise unexpected problems may occur.
- Never push the tray to its original position while the stand of the Conveyance belt of SaddleStitcher SD-506 remains set up.
3
Press the Start/Stop key [1] to start processing.
If the machine stops because double feeding was detected but did not actually occur, press Multi-feed detection key [2] to light up the Double Feed Detection OFF indicator LED.
To stop processing, press Start/Stop key [1] again.
