Category

Network / Security

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[ON]

Uses the destination IP address for notifications.

-[OFF]

Does not use the destination IP address for notifications.

[Host Address]

[Input Host Name]

Sets host name.

Up to 253 single-byte characters can be entered, including periods. If entering 64 or more single-byte characters, it is necessary to separate them using periods (.).

[IPv4 Address Input]

Sets the IPv4 address.

Range: 0 to 255.0 to 255.0 to 255.0 to 255

Default: 0.0.0.0

[IPv6 Address Input]

Sets the IPv6 address.

Range: 1 byte to 39 bytes

Default: 0:0:0:0:0:0:0:0

[Port Number]

Enter the port number using the Keypad of the Control panel.

Range: 1 to 65535

Default: 162

[Community Name]

Sets community name.

Up to 15 single-byte characters can be entered.

Default: public

[Notification Items]

[Service Call]

[ON]

-[OFF]

[Paper JAM]

[ON]

-[OFF]

[Replenish Paper Tray]

[ON]

-[OFF]

[Replenish Toner]

[ON]

-[OFF]

[PM Call]

[ON]

-[OFF]

[Replace Staples]

[ON]

-[OFF]

[Finisher Tray Full]

[ON]

-[OFF]

[Empty Hole-Punch Scrap Box]

[ON]

-[OFF]

[Empty Trim Scrap Box]

[ON]

-[OFF]

[Glue Pellet Supply]

[ON]

-[OFF]

[Exchange Trim Receiver]

[ON]

-[OFF]

[Waste Toner Box Full]

[ON]

-[OFF]

[Empty Staple Scrap Box]

[ON]

-[OFF]

[Humidifier Tank Supply]

[ON]

-[OFF]

[Bind Parts Supply]

[ON]

-[OFF]

[HDD (Scan Data) Almost Full]

[ON]

-[OFF]

[HDD (Copy Data) Almost Full]

[ON]

-[OFF]

[Auto Inspection]

[ON]

-[OFF]

Remarks

-: Default

Reference

-

Screen access

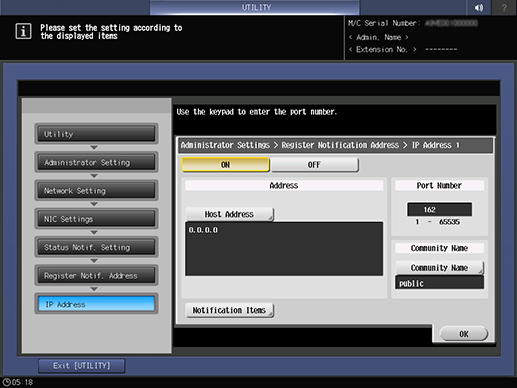

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [Detail Settings] - [Status Notification Setting] - [Register Notification Address] - [IP Address 1]
