Operating environment

Computer environment

Make sure that the computer to be connected meets the following conditions.

Operating system

Windows 7 Professional (Service Pack 1)*

Windows 7 Enterprise (Service Pack 1)*

Windows 7 Ultimate (Service Pack 1)*

Windows 8.1*

Windows 8.1 Pro*

Windows 8.1 Enterprise*

Windows 10 Home*

Windows 10 Pro*

Windows 10 Enterprise*

Windows 10 Education*

Windows Server 2008 Standard (Service Pack 2)*

Windows Server 2008 Enterprise (Service Pack 2)*

Windows Server 2008 Standard without Hyper-V (Service Pack 2)*

Windows Server 2008 Enterprise without Hyper-V (Service Pack 2)*

Windows Server 2008 R2 Standard (Service Pack 1)

Windows Server 2008 R2 Enterprise (Service Pack 1)

Windows Server 2012 Standard

Windows Server 2012 Datacenter

Windows Server 2012 Essentials

Windows Server 2012 Foundation

Windows Server 2012 R2 Standard

Windows Server 2012 R2 Datacenter

Windows Server 2012 R2 Essentials

Windows Server 2012 R2 Foundation

Windows Server 2016 Standard

Windows Server 2016 Datacenter

Windows Server 2016 Essentials

Windows Server 2019 Standard

Windows Server 2019 Datacenter

Windows Server 2019 Essentials

  • * Supports 32-bit (x86) and 64-bit (x64) environments.

Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14

CPU

Intel Core2 Duo 3 GHz or more

HDD

3 GB or more

Memory

3 GB or more / Memory capacity as recommended for your operating system

Sufficient memory capacity is required for your operating system and the applications to be used.

Drive

CD-ROM drive

Display

1024 768 pixels or more

Tips

  • This chapter separately provides the descriptions for Windows and Macintosh if their operations are different. When operations are common, the description for Windows is provided as a typical one. The Macintosh-specific operations are described in the locations in which their explanation is required.

Interface

To connect Color Centro to the image controller, use the Ethernet via a network connection.

It supports 1000 Base-T, 100 Base-TX, and 10 Base-T standards.

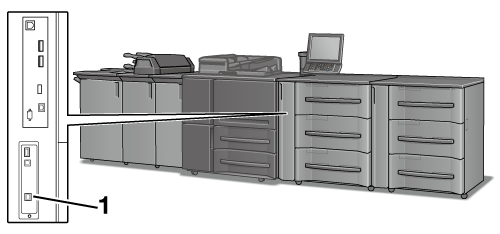

Connection diagram

Connect the network cable to the Ethernet port on this machine.

1. Ethernet port (1000 Base-T/100 Base-TX/10 Base-T)
