Changing Information

This section describes how to manage the saved tone curve. The management of the tone curve uses Tone Curve Management screen. For details about the Tone Curve Management screen, refer to Tone Curve Management Screen.

You can change the tone curve information (Saved Name, Memo).

1. From the tree view and the list of Tone Curve Management screen, select the tone curve to change the information.

   • supplementary explanationFor details about how to connect another image controller, refer to Switch the Image Controller to Connect.

   • supplementary explanationWhen you reload the information of the image controller connected currently, select File menu - Reload.

2. Click Change Table Information.

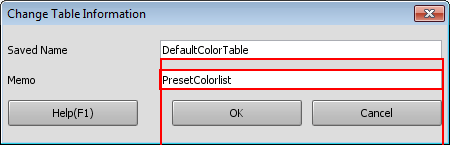

   The Change Table Information screen is displayed.

   • supplementary explanationWhen you select the multiple tone curves, Change Table Information is not available.

   • supplementary explanationSimilar operation can be done when you select File menu - Change Table Information.

3. If necessary, enter Saved Name and Memo.
   You can enter up to 31 one-byte characters (31 two-byte characters) to Saved Name.
   You can enter up to 64 one-byte characters (32 two-byte characters) to Memo.

   • supplementary explanationWhen you change the saved name of the tone curve in the image controller, you cannot specify the same name with those registered in the image controller.

4. Click OK.

   The tone curve information is changed.
