Recalling Scan Settings

Follow the procedure below to recall jobs that are already stored.

preconditionTo display the Mode Memory Mode screen, display the SCAN screen, and then press Mode Memory on the control panel. When the MACHINE or other screen is displayed, the Mode Memory Mode screen is not displayed.

Position the original.
Press SCAN tab.
The SCAN screen is displayed.

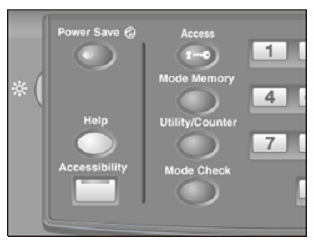

Press Mode Memory on the control panel.

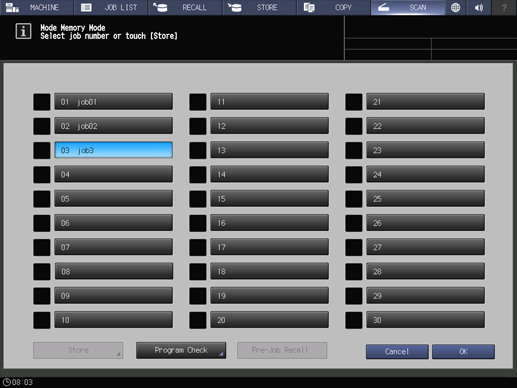

The Mode Memory Mode screen is displayed.
Press the job number key that you want to recall.
Press Program Check.

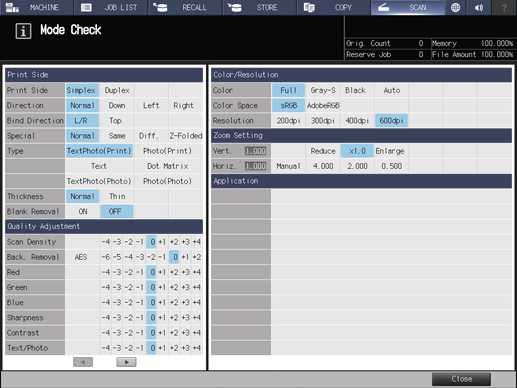

The Mode Check screen is displayed. Review the job settings.
- supplementary explanationThe current settings of Print Side, Quality Adjustment and Scan Size are displayed in the left side area of the Mode Check screen.
- supplementary explanationThe current settings of Color/Resolution, Zoom Setting, and Application are displayed on the right side of the Mode Check screen.
Press Close on the Mode Check screen.
The registered scan settings are recalled and the SCAN screen is displayed.
Enter the desired print quantity, then press Start on the control panel.
