Importing a PDF/VT-2 File

You can import a PDF/VT-2 file in the print settings.

Before importing the target file, configure a setting in this machine and Hot Folder as shown below.

- This machine: On the control panel, select Controller - PDF/VT-2 Shared Folder - Enable.
For details, refer to PDF/VT-2 Shared Folder.

- Hot Folder: Select the print settings of the printer - Imaging tab - PDF RIP - APPE

Add a file you want to import.
- supplementary explanationFor details on how to add a file, refer to steps 1 to 4 in Adding a File for Printing.

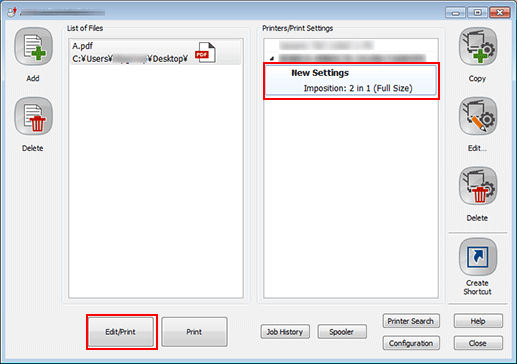

If you click Edit/Print or select the print settings of the printer, the printer driver screen is displayed.

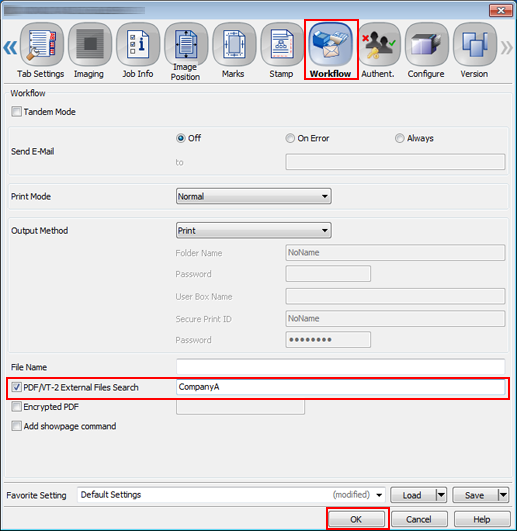

In the Workflow tab, select the PDF/VT-2 External Files Search check box, and enter the sub folder name. In this example, enter the sub folder name, CompanyA, of the sub folder created under the pdfvt folder. Then, click OK.
