Zoom/Image Shift Adjustment

The magnification and printing position in vertical and horizontal directions can be finely adjusted on both Front side and Back side. Because the adjustment data can be entered directly in percentage terms or in numerical terms to shift, it is convenient for fine adjustment after Scan Meas. adjustment, Gap adjustment or Chart Adjustment or when you have a result of the 2-sided printing at hand.

Tips

  • This section explains the Image Shift adjustment on the machine side, but this setting is also available via the printer driver for each job. For details, refer to Image Position Screen.

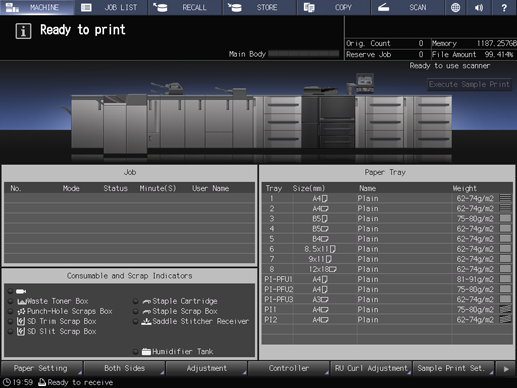

  1. Press Both Sides on the MACHINE screen.

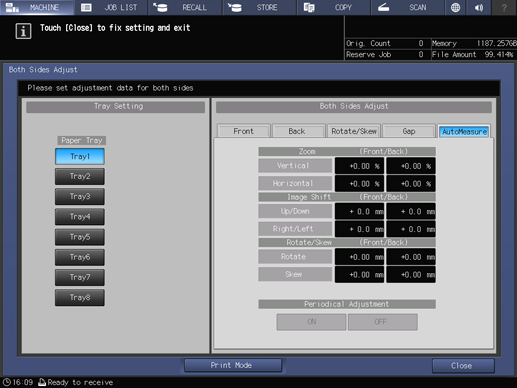

  2. Select the tray in which the papers to be adjusted have been set.

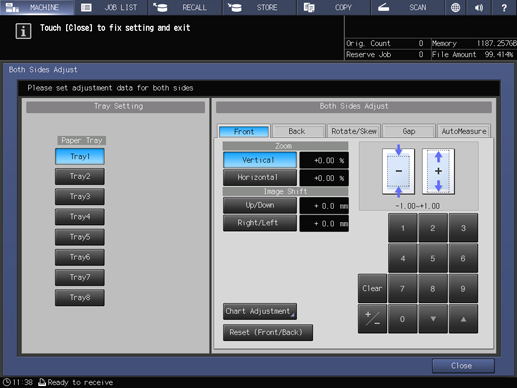

  3. Press Front or Back to specify the printing side to be adjusted.

  4. Use the touch panel keypad, down, up, or the keypad on the control panel to enter Zoom.

    • supplementary explanationFor the adjustment of Zoom, check it at the center of the page.

    • supplementary explanationPress Vertical or Horizontal below Zoom and then enter a value. Vertical adjusts the magnification in the crosswise direction. Horizontal adjusts the magnification in the paper feed direction.

    • supplementary explanationTo enlarge the printing side, enter a positive value, and to shrink it, enter a negative value.

    • supplementary explanationAdjustment range: For Vertical, -1.00 to 1.00; for Horizontal, -0.50 to 0.50 (1 step = 0.01%)

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Clear to reset the numeric value you are currently entering.

    • supplementary explanationPressing Reset (Front/Back) resets all the values you specified in Front, Back, or Rotate/Skew.

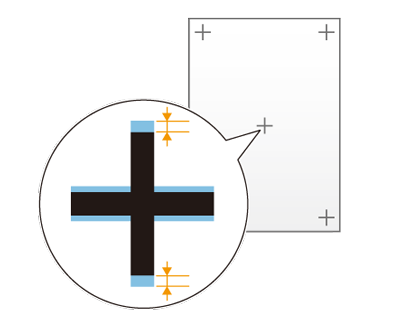

    • supplementary explanationZoom adjustment example: When the image on the back side is vertically enlarged to 10.1 mm against the image of 10 mm on the front side, press Vertical on Back, and then press in order of 100+/- to specify -1.00. The image on the back side is reduced by 1%. (The black in the figure indicates the front side and the blue indicates the back side.)

  5. Use the touch panel keypad, down, up, or the keypad on the control panel to enter the value of Image Shift.

    • supplementary explanationFor the adjustment of Image Shift, check it at the center of the page.

    • supplementary explanationPress Up/Down or Right/Left below Image Shift, and then enter a value.

    • supplementary explanationTo move the printing side upward or rightward, enter a positive value, and to move downward or leftward, enter a negative value.

    • supplementary explanationAdjustment range: Up/Down and Right/Left = -10.0 to +10.0 (1 step = 0.1 mm)

    • supplementary explanationThe method of entering a value is the same as that of the step 4.

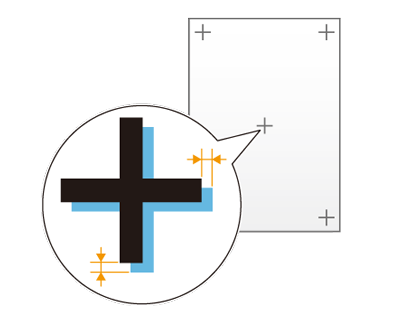

    • supplementary explanationAdjustment example of Image Shift: When the image on the back side is misaligned downward by 0.5 mm and rightward by 0.3 mm against that of the front side, press Up/Down of Back, and then press 5 to specify +0.5 mm. Then, press Right/Left and press in the order of 3 and +/- to specify -0.3 mm. The image on the back side is shifted to the top by 0.5 mm and the left by 0.3 mm. (The black in the figure indicates the front side and the blue indicates the back side.)

  6. Press Close.

    Now, the Zoom/Image Shift adjustment is completed.

Tips

  • After performing Both Sides Adjust several times, if the printing position is still misaligned between the front and back sides, readjust the reference position of the printing side. For details about how to adjust it, refer to Machine Adjustment.

  • You can register the adjusted value of Both Sides Adjust with the profile where paper conditions are set. With the paper setting registered, you can print documents in the same conditions as before, even after changing the tray to be set. For details about editing or registration of a profile, refer to Registering a Paper Profile on the Register/Delete Paper Setting Screen.
