Staple Paper Width Adjustment
If a staple paper set is misaligned, adjust the alignment width of the stapled paper set using the staple bunch adjustment plate (stapled paper width).
As an example, this section explains how to reduce the staple paper width by 1 mm.
Meaning and Purpose of Staple Paper Width Adjustment
When there is misalignment in the stacked paper to staple, this function allows you to adjust the alignment width of the stapled paper set by specifying the desired value.
- value: Narrows.
+ value: Widens.
When to perform
When there is misalignment in the stacked paper to staple
Intended Environment
Image Controller | Built-in image controller |
Mounted finisher | Finisher FS-532 |
* The sample screen may be different from the actual display depending on your system environment.

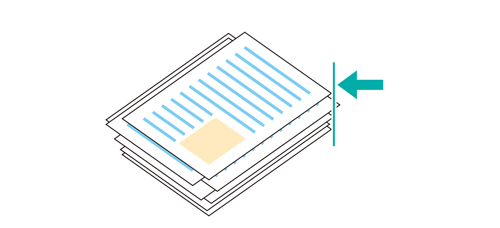

Print the original and check the current misalignment 'a' in the paper stack using a ruler.

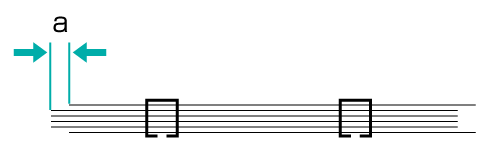

Check for misalignment ('a' below) in the paper stack. If the set paper width is greater than the actual paper width, a misalignment occurs.
On the touch panel of the main body, press Adjustment on the MACHINE screen.
Press Finisher Adjustment on the Adjustment Menu screen.
Press Staple Finisher Adjustment on the Finisher Adjustment menu.

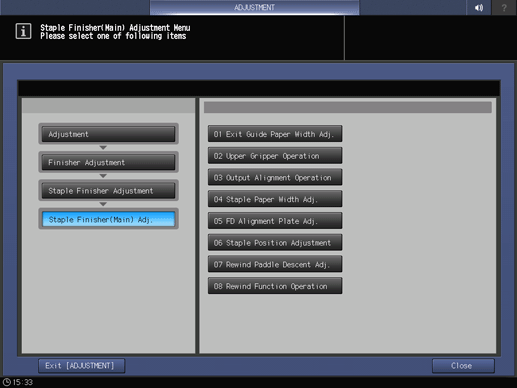

Press Staple Finisher(Main) Adj. on the Staple Finisher Adjustment menu.
Press Staple Paper Width Adj. on the Staple Finisher(Main) Adj. menu.

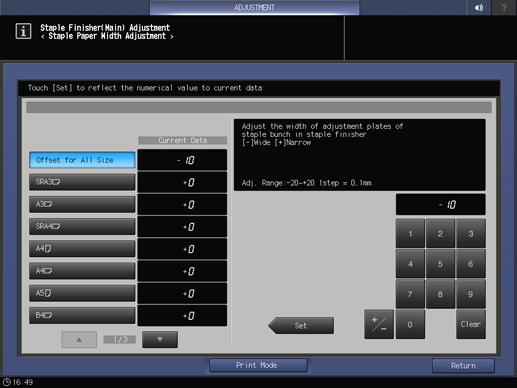

Press the paper size to adjust. Enter the adjustment value and press Set.
Example: Make the staple paper width for Offset for All Size (all paper sizes) narrower by 1 mm.
Item
Setting
Offset for All Size
Narrowing by 1 mm (-10)
Press Offset for All Size, +/-, 1, 0 , and Set to enter the value [-10]. This makes the staple paper width 1 mm narrower.
supplementary explanationPress the keypad on the screen to set the value.
supplementary explanationUse +/- to specify the value to be positive or negative.
supplementary explanationThe values are in 0.1 mm increments. (1 = 0.1 mm)
supplementary explanationWith a specific paper size selected, the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.
supplementary explanationPressing Print Mode switches the mode to print mode, which allows you to print the original.
Print the original again and check the staple paper width for misalignment.
Repeat the above steps as necessary.
