Adjusting the Punch Horizontal Position (Paper Feed Direction)

You can adjust the paper feed direction of punch hole position to fix the distance from the edge of punched output to the punch hole position

As an example, this section explains how to bring the punch hole position 1.5 mm closer to the edge of punched output by using the Finisher FS-532 mounted Punch Kit PK-522.

Meaning and Purpose of Punch Horizontal Position Adjustment

  • When the distance from the edge of punched output to the punch hole position is too close or too far, this function allows you to move the punch hole position closer or farther by specifying the desired value.

  • - values: Moves the punch hole position farther from the edge of paper.

  • + value: Moves the punch hole position closer to the edge of paper.

When to perform

  • When the distance from the edge of punched output to the punch hole position is too close or too far

Intended Environment

Image Controller

Built-in image controller

Mounted finisher

Finisher FS-532 mounted Punch Kit PK-522

* The sample screen may be different from the actual display depending on your system environment.

  1. Measure the current misalignment 'a' of the punch hole position using a ruler.

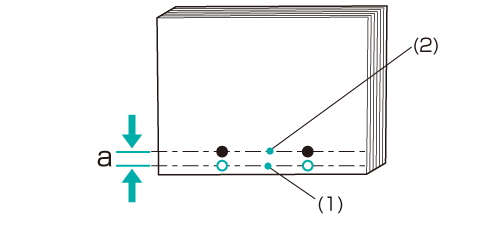

    • supplementary explanationMeasure the distance between the desired punch hole position (1) and the current punch hole position (2) (= Width 'a').

  2. On the touch panel of the main body, press Adjustment on the MACHINE screen.

  3. Press Finisher Adjustment on the Adjustment Menu screen.

  4. Press Staple Finisher Adjustment on the Finisher Adjustment menu.

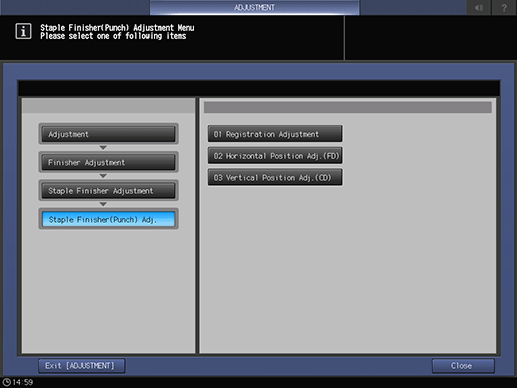

  5. Press Staple Finisher(Punch) Adj. on the Staple Finisher Adjustment menu.

  6. Press Horizontal Position Adj. (FD) on the Staple Finisher(Punch) Adj..

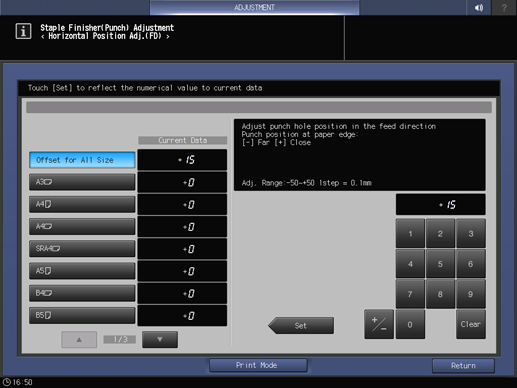

  7. Press the paper size to adjust. Enter the adjustment value and press Set.

    Example: Move the punch hole position for Offset for All Size (all paper sizes) 1.5 mm closer to the edge of paper.

    Item

    Setting

    Offset for All Size

    Moving 1.5 mm closer to the edge of paper (+15)

    • Press 1, 5, and Set to enter the value +15. This moves the staple position 1.5 mm downward (forward).

    • supplementary explanationPress the keypad on the screen to set the value.

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationThe values are in 0.1 mm increments. (1 = 0.1 mm)

    • supplementary explanationPressing Print Mode switches the mode to print mode, which allows you to print the original.

  8. Print the original again and check the punch hole position for misalignment.

    Repeat the above steps until misalignment is cleared.
