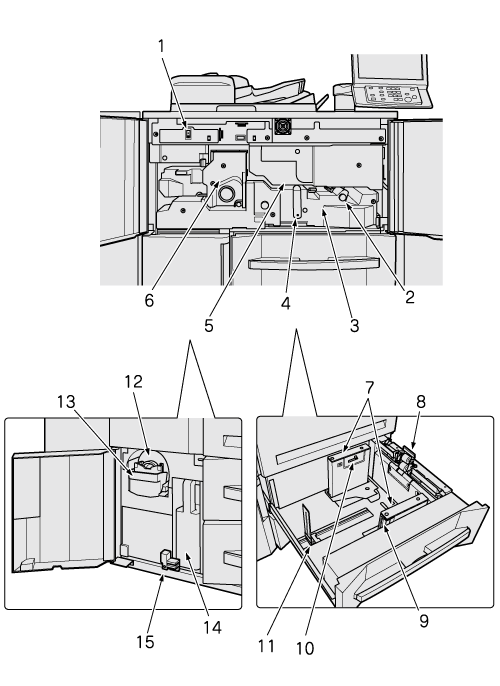

Internal Machine Items
No. | Name | Description |
|---|---|---|
1 | Main power switch | Used only by service representative to turn the machine power on/off. Be sure not to turn it off in usual operation. |
2 | Knob [M2] | Opens leftward to allow removal of mishandled paper. |
3 | Conveyance fixing unit | Pulled out for removal of paper jam. For handling levers and knobs of the conveyance fixing unit, follow the instruction on the screen to be displayed when paper jam occurs. |
4 | Lever [M4] | Opens rightward to allow withdrawal of the conveyance fusing unit for removal of mishandled paper. |
5 | Drum unit | Forms the image. |
6 | Fusing unit | Fuses toner onto paper. |
7 | Side guide plate | Aligned to the edges of loaded paper. |
8 | Feed roller | Feeds paper sheet by sheet to the printing unit. |
9 | Side guide lock release lever | Pushed backward to release the lock in order to move side guide plates. |
10 | Air outlet | Blows air to slightly float the paper to prevent double feed. |
11 | Rear guide plate | Aligned to the rear edge of loaded paper. |
12 | Toner bottle | Supplies the main body with toner. |
13 | Toner replenishing unit | Pull this unit forward when drawing the toner unit to replace the toner bottle. |
14 | Waste toner box | Collects waste toner. |
15 | Lock lever | Lower this lever to the left to unlock when replacing a waste toner box. |
