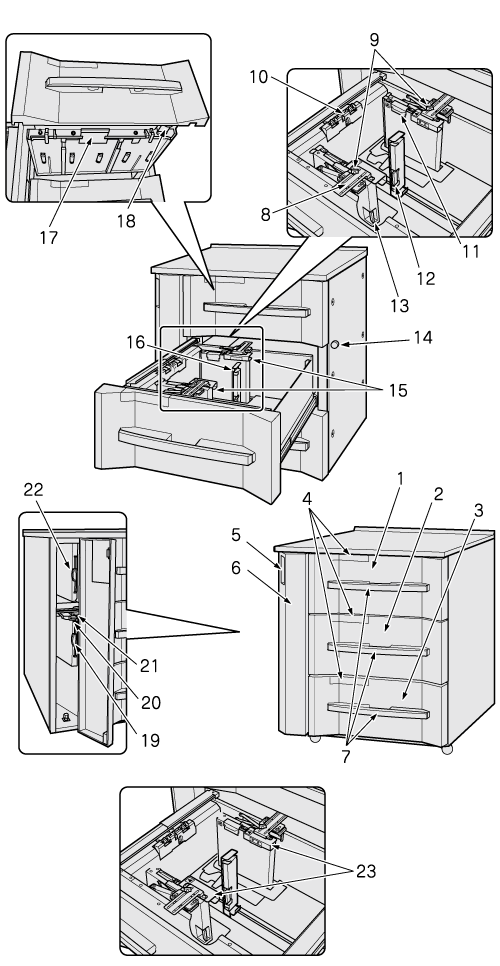

Large Capacity Post Inserter PI-PFU (Paper Feed Unit PF-710 + Feed Adjuster FA-503)

1

Upper tray (PI-PFU1)

Holds 1,300 sheets (80 g/m² / 21 lb Bond).

2

Middle tray (PI-PFU2)

Holds 1,850 sheets (80 g/m² / 21 lb Bond).

3

Lower tray (PI-PFU3)

Holds 1,850 sheets (80 g/m² / 21 lb Bond).

4

Air nozzle confirmation window

Opens to confirm paper fed by air nozzle.

5

Tray left side door knob

Held to open the tray left side door.

6

Tray left side door

Opens for removal of mishandled paper from the main body right side door or from a tray.

7

Tray handle

Held to withdraw the tray.

8

Paper size indicator

Indicates the position of the side guide plates for the standard size.

9

Side guide fixing knob

Turned to move or fix the side guide plates.

10

Edge air nozzle

Blows air to separate the print paper.

11

Side guide fixing knob

Turned to move or fix the side guide plates.

12

Side air nozzle

Blows air to slightly float the paper to prevent double feed.

13

Rear edge guide lock release lever

Pushed leftward to release the lock in order to move rear-side guide plates.

14

Side guide lock release lever

Pushed backward to release the lock in order to move side guide plates.

15

Feed-out knob

Turn this knob to output jammed sheets in the horizontal conveyance side.

16

Side guide plates (2 pieces)

Aligned to the edges of loaded paper.

17

Rear guide plate

Aligned to the rear edge of loaded paper.

18

Horizontal conveyance cover lever

Opens downward for removal of paper jam.

19

Horizontal conveyance knob

Turn this knob to output jammed sheets in the horizontal conveyance side.

20

Lower tray vertical conveyance door

Opens leftward for removal of paper jam.

21

Lever [PF1]

Opens downward for removal of paper jam.

22

Lever [PF2]

Opens downward for removal of paper jam.

23

Upper tray vertical conveyance door

Opens leftward for removal of paper jam.

24

Side auxiliary guides (2 pieces)

Mount these guides on the side guide plates when loading tab paper.
