Perfect Binder PB-503

External view of Perfect Binder PB-503

No.

Name

Description

1

Glue hopper cover

Opens for supply of glue pellets.

2

Exhaust fan

Exhausts air from Perfect Binder PB-503.

3

Secondary (sub) tray

Holds sets output being processed by Perfect Binder PB-503.

4

Perfect binder tray front door

Opens to allow removal of paper jam and waste trimmings. Inside the Perfect binder front door, the glue tank unit is installed at the back.

5

Cover Tray

Holds cover paper for perfect binding.

6

Perfect binder tray window

Allows you to check the sets output to the perfect binder tray.

If the sets are piled on the right side of the perfect binder tray, press the feeding button to feed them to the carriage.

7

Perfect binder tray front door

Opens to take out the bound sets from the tray.

8

Feeding button

Feeds bound sets into the carriage.

9

Paper jam indicator

Lights when a paper jam occurs in conveying sheets output from the finishing section of Perfect Binder PB-503.

Internal view of perfect binder tray front door

No.

Name

Description

10

Book holding plate

Aligned to output books to prevent them from collapsing during portage.

11

Carriage

Carries perfect-bound books out from Perfect Binder PB-503.

12

Book stopper

Inserted to an appropriate stopper positioning hole to prevent output books from collapsing during portage.

13

Book holding plate lever

Moved to align the book holding plate to output books.

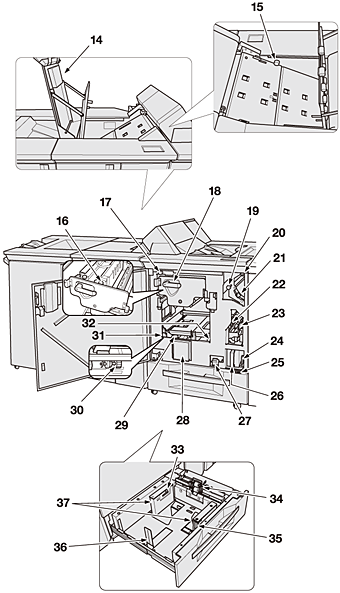

Conveyance section

No.

Name

Description

14

Conveyance section cover

Opens to allow removal of paper jam when paper jam indicator lights.

15

Knob [PB14]

Turned counterclockwise to ease removal of paper jam.

Internal view of perfect binder front door

No.

Name

Description

16

Body set release knob in clamp unit

Turned clockwise to take out the body set fixed in the clamp unit.

17

Knob [PB2]

Turned to feed the body set to the clamp unit for removal of paper jam.

18

Lever [PB7]

Pushed downward to withdraw the clamp unit for removal of body set jammed in the clamp unit.

19

Knob [PB6]

Turned to feed the jammed paper into the secondary (sub) tray.

20

Lever [PB3]

Opens downward for removal of jammed body set.

21

Lever [PB1]

Opens upward for removal of jammed body set.

22

Lever [PB12]

Opens upward for removal of jammed body set.

23

Lever [PB4]

Opens leftward to allow removal of jammed cover paper.

24

Lever [PB5]

Opens leftward with the trim scrap box drawn out for removal of jammed cover paper.

25

Knob [PB13]

Turned clockwise to ease removal of jammed cover paper.

26

Trim scrap box

Withdrawn for removal of waste trimmings.

27

Knob [PB11]

Turned upward to let the binding unit down for removal of paper jam.

28

Jam position display

Indicates the position of paper jam by LED lamps.

29

Knob [PB8]

Turned clockwise for removal of cover paper from the binding unit when paper jams.

30

Binding unit release knob

Turned downward for removal of cover paper from the binding unit in the top position.

31

Knob [PB9]

Turned clockwise to release the cover fixing plate for removal of paper jam.

32

Knob [PB10]

Turned counterclockwise to release the cover fixing plate for removal of paper jam.

Internal view of cover tray

No.

Name

Description

33

Air nozzle

Blows air to avoid feeding multiple sheets of cover paper at a time.

34

Feed roller

Feeds cover paper sheet by sheet to Perfect Binder PB-503.

35

Lock release knob

Pushed backward to release the lock in order to move guide plates.

36

Rear stopper

Aligned to the rear edge of loaded paper.

37

Guide plates

Aligned to the edges of loaded paper.
