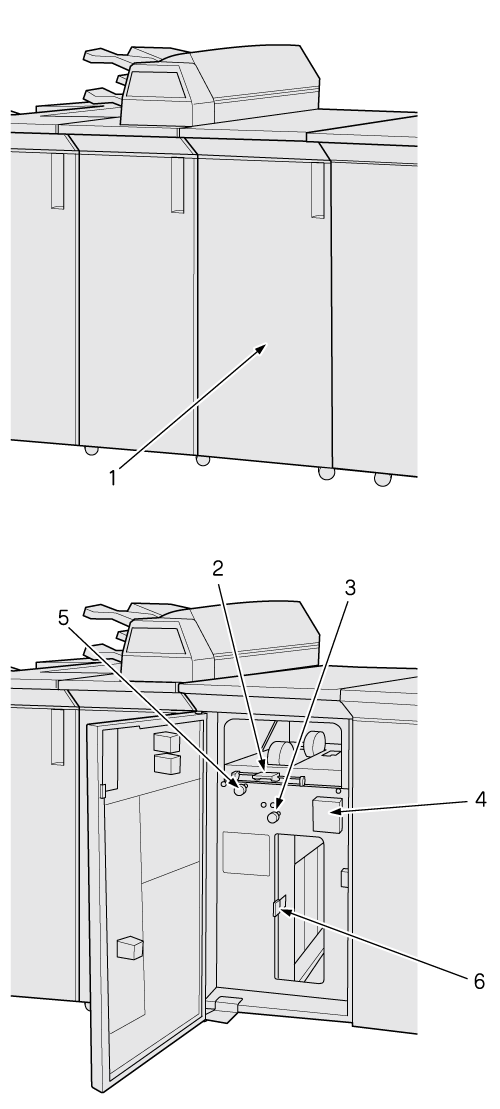

Relay Unit RU-510

No.

Name

Description

1

Relay unit front door

Opens to allow removal of paper jam.

2

Lever [RU1]

Opens upward for removal of paper jam.

3

Knob [RU2]

Turned to allow removal of paper jam.

4

Jam position display

Indicates the position of paper jam by LED lamps.

5

Knob [RU3]

Turned clockwise to allow removal of paper jam.

6

Lever [RU4]

Opens rightward for removal of paper jam.
