Paper Feed Unit PF-710

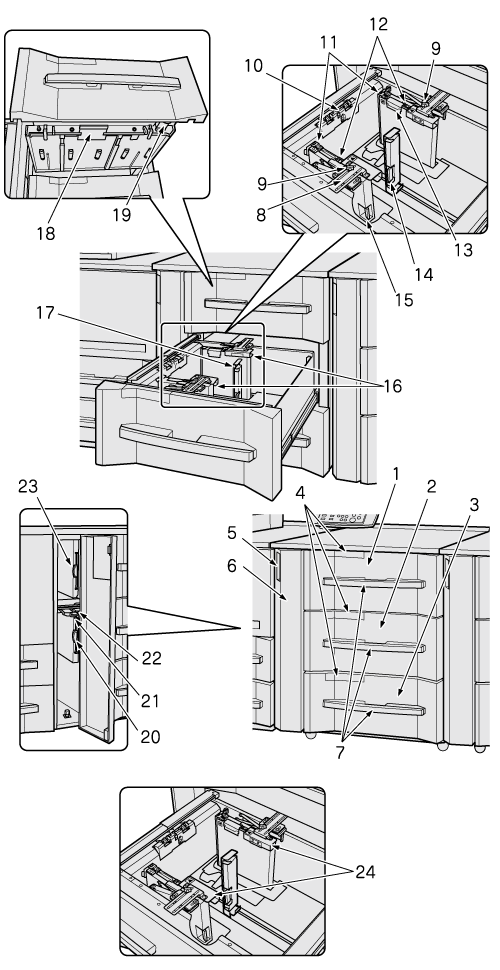

No. | Name | Description |
|---|---|---|
1 | Upper tray (Tray 3) (Tray 6 for 2nd unit, Tray 9 for 3rd unit) | Holds 1,300 sheets (80 g/m2 / 21 lb Bond). |
2 | Middle tray (Tray 4) (Tray 7 for 2nd unit, Tray 10 for 3rd unit) | Holds 1,850 sheets (80 g/m2 / 21 lb Bond). |
3 | Upper tray (Tray 5) (Tray 8 for 2nd unit, Tray 11 for 3rd unit) | Holds 1,850 sheets (80 g/m2 / 21 lb Bond). |
4 | Air nozzle confirmation window | Opens to confirm paper fed by air nozzle. |
5 | Tray left side door knob | Held to open the tray left side door. |
6 | Tray left side door | Opens for removal of mishandled paper from the main body right side door or from a tray. |
7 | Tray handle | Held to withdraw the tray. |
8 | Paper size indicator | Indicates the position of the side guide plates for the standard size. |
9 | Side guide fixing knob | Turned to move or fix the side guide plates. |
10 | Edge air nozzle | Blows air to separate the print paper. |
11 | Small size guides (2 pieces) | Open inward for print paper of the width less than 139 mm / 5.47". |
12 | Paper holding plate fixing lever (2 pieces) | When using small-size guides, slide this lever leftward to lock the paper holding plate. |
13 | Side guide fixing knob | Turned to move or fix the side guide plates. |
14 | Side air nozzle | Blows air to slightly float the paper to prevent double feed. |
15 | Rear edge guide lock release lever | Pushed leftward to release the lock in order to move rear-side guide plates. |
16 | Side guide lock release lever | Pushed backward to release the lock in order to move side guide plates. |
17 | Side guide plates (2 pieces) | Aligned to the edges of loaded paper. |
18 | Rear guide plate | Aligned to the rear edge of loaded paper. |
19 | Horizontal conveyance cover lever | Opens downward for removal of paper jam. |
20 | Horizontal conveyance knob | Turn this knob to output jammed sheets in the horizontal conveyance side. |
21 | Lower tray vertical conveyance door | Opens leftward for removal of paper jam. |
22 | Lever [PF1] | Opens downward for removal of paper jam. |
23 | Lever [PF2] | Opens downward for removal of paper jam. |
