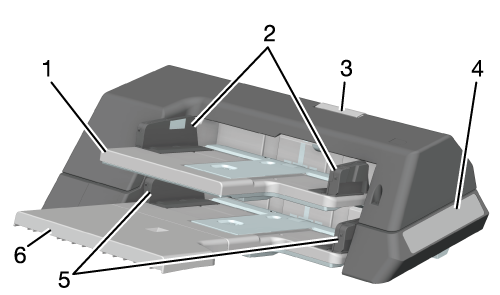

1

Upper tray

Load the cover paper.

2

Upper tray guides

It is run alongside the loaded cover paper.

3

Upper unit release lever

Pull up when clearing a paper jam. Slide the upper unit of the open PostInserter PI-502 to the left and remove the jammed paper.

4

Post inserter control panel

Used when manually operating the finisher. There are Staple mode selection button and Punch button.

5

Lower tray guides

It is run alongside the loaded cover paper.

6

Lower tray

Load the cover paper.

Name

PostInserter PI-502

Application item

Finisher FS-541*

*: Mount Kit MK-732 is required

Type

Torque Limiter Separated Sheet Feeder

Function

Automatic

Feeds paper into the finisher on receiving a command from the machine.

Manual

Feeds paper into the finisher on receiving a command manually sent from the Post inserter control panel.

Paper Size

Upper tray

Standard: A4 w/v, B5 w/v, A5 v, 8.5 e 11 w/v, 7.25 e 10.5 w, 5.5 e 8.5 v, 16K w/v

Custom: Widthwise 182 mm to 330 mm, lengthwise 139 mm to 297 mm / Widthwise 7.17" to 12.99", lengthwise 5.47" to 11.69"

Lower tray

Standard: A3 w, B4 w, SRA4 w, A4 w/v, B5 w/v, A5 v, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 v, Foolscap^*, 8K w, 16K w/v

Custom: Widthwise 182 mm to 330 mm, lengthwise 139 mm to 482 mm / Widthwise 7.17" to 12.99", lengthwise 5.47" to 18.98"

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper type

Plain paper, Fine, Color Specific, Coated

Weight

50 g/m² to 300 g/m² / 13 lb Bond to 81 lb Bond

Feed capacity

Both Upper tray and Lower tray are 200 sheets (80 g/m² / 21 lb Bond) or within height of 30 mm / 1.18"

Size

540 mm (W) e 620 mm (D) e 220 mm (H) / 21.26" (W) e 24.41" (D) e 8.66" (H)

Mass

11.7 kg / 25.79 lb

Power

Supplied from machine

Maximum power consumption

30 W or less
