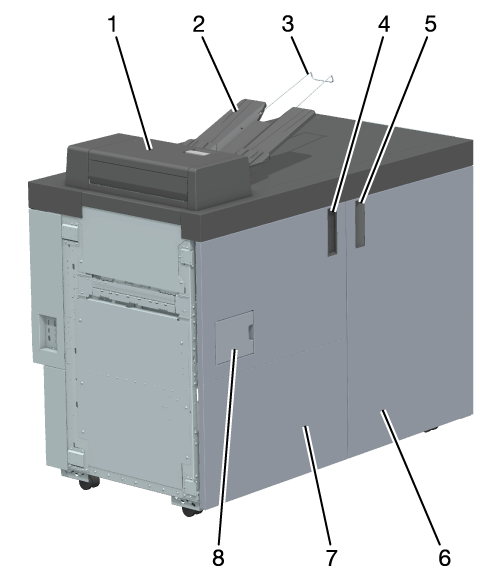

1

Top cover

When clearing a paper jam, open the cover and remove the paper.

2

Secondary (sub) tray

Output the trimmed or creased paper or the paper delivered without processing.

3

Secondary (sub) tray extension

Pull out when ejecting large sheets of paper to Secondary (sub) tray.

4

Trimmer unit left side door knob

Used when opening Trimmer unit left side door.

5

Trimmer unit right side door knob

Used when opening Trimmer unit right side door.

6

Trimmer unit right side door

Open this door when clearing a paper jam or replacing an internal option.

7

Trimmer unit left side door

Open this door when clearing a paper jam or replacing an internal option.

8

Card tray door

Open this door when pulling out the Card tray.

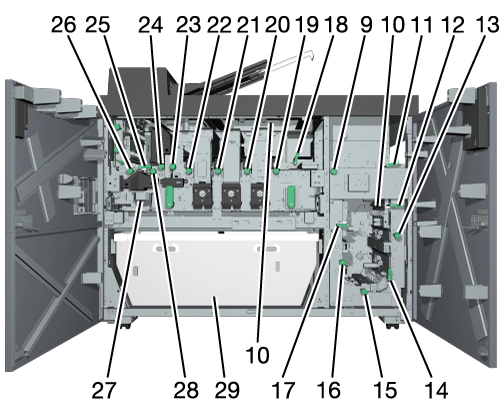

9

Knob [TU2]

When clearing a paper jam, turn the knob to feed the paper through.

10

Banner Unit MK-764 (option) (2 locations)

Convey banner paper to the post-processing device, or invert-convey paper.

11

Lever [TU1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

12

Lever [MK1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

13

Knob [MK2]

When clearing a paper jam, turn the knob to feed the paper through.

14

Lever [MK3]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

15

Knob [MK4]

When clearing a paper jam, turn the knob to feed the paper through.

16

Knob [MK5]

When clearing a paper jam, turn the knob to feed the paper through.

17

Lever [MK6]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

18

Lever [TU3]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

19

Knob [TU8]

When clearing a paper jam, turn the knob to feed the paper through.

20

Knob [TU10]

When clearing a paper jam, turn the knob to feed the paper through.

21

Knob [TU12]

When clearing a paper jam, turn the knob to feed the paper through.

22

Knob [TU14]

When clearing a paper jam, turn the knob to feed the paper through.

23

Knob [TU15]

When clearing a paper jam, turn the knob to feed the paper through.

24

Knob [TU16]

When clearing a paper jam, turn the knob to feed the paper through.

25

Lever [TU20]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

26

Knob [TU21]

When clearing a paper jam, turn the knob to feed the paper through.

27

Card tray (Supplied with Job Separator JS-507) (Option)

Stack sheets cut to the card size.

28

Knob [TU17]

When clearing a paper jam, turn the knob to feed the paper through.

29

Trim scrap box

Pull out when discarding trim scrap.

30

Knob [TU25]

When clearing a paper jam, turn the knob to feed the paper through.

31

Trimmer Unit TU-504 (optional)

Slit the gutter parallel to the paper feed direction.

32

Creaser Unit CR-102 (optional)

Attach down-convex creases (folding lines) on paper.

33

Slitter unit

Trims paper in the paper feed direction.

34

Lever [TU4]

When clearing a paper jam or replacing an internal option, tilt the lever to the left and pull out the conveyance base.

35

Option fixing bracket

Turn to the left when removing an option.

36

Lever [TU5]

When clearing a paper jam or replacing an internal option, tilt the lever to the right and pull out the conveyance base.

37

Job Separator JS-507 (optional)

Cuts paper to the card size.

38

Knob [TU23]

When clearing a paper jam, turn the knob to feed the paper through.

39

Lever [TU22]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

40

Lever [TU7]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

41

Lever [TU9]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

42

Lever [TU11]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

43

Lever [TU13]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

44

Knob [MK8]

When clearing a paper jam, turn the knob to feed the paper through.

45

Lever [MK7]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

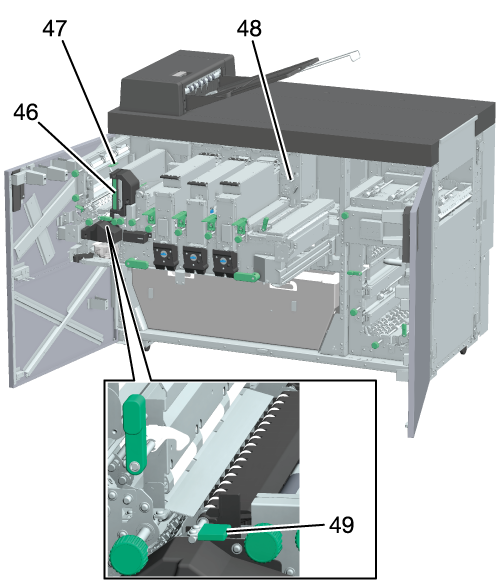

46

Lever [TU18]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

47

Lever [MK24]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

48

Lock lever [TU6]

Fixes the pulled-out conveyance unit.

49

Lever [JS1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

Name

Trimmer Unit TU-510

Format

Four-edge trimmer

Function

Through-path

Conveys paper to post-processing device without processing.

Slit

Trims paper in the paper feed direction.

Cut

Trims paper in the crosswise direction.

Four Edge Trim (Slit + Cut)

Trims paper at edges and four sides in the feed direction and crosswise direction.

Four Edge Trim (2-sheet mode)

Trims single wide paper to two sheets of A4 or 8.5 e 11.

Crease (Down Convex) (with Creaser Unit CR-102 mounted)

Attaches down-convex creases (folding lines) in the paper crosswise direction.

Slit trim (with Trimmer Unit TU-504 mounted) (Four Edge Trim)

Cuts single paper into multiple sheets, and trims in the paper feed direction.

Banner paper conveyance and reverse (with Banner Unit MK-764 mounted)

Conveys banner paper to the post-processing device, and corrects any paper skew.

Reverse conveyance

Reverses paper, and conveys it to the post-processing device.

Subtray output

Ejects to Secondary (sub) tray.

Card creation (Cut + Gutter Slit) (with Job Separator JS-507 mounted)

Cuts paper to the card size.

Through-path

Paper Size

Standard size: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap* , 8K w, 16K w/v

Custom:

Widthwise 95 mm to 330.2 mm, lengthwise 133 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.24" to 51.18"

Fixed tab paper (back edge of tab during output is not guaranteed)

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 11 lb Bond to 119 lb Bond

* The paper type is limited to 351 g/m² to 450 g/m² / 94 lb Bond to 119 lb Bond.

* Paper of lengthwise 487.8 mm to 1,300 mm / lengthwise 19.2" to 51.18" is limited to 128 g/m² to 300 g/m² / 33 lb Bond to 81 lb Bond.

Slit

Paper size

Custom:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 1,300 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 51.18"

Others conform to the through-path specifications.

Paper weight

Thin paper to plain paper: 50 g/m² to 61 g/m² / 14 lb Bond to 15 lb Bond

Plain paper to thick paper: 62 g/m² to 400 g/m² / 16 lb Bond to 106 lb Bond

Setting units

0.1 mm

Slit independent setting

The lengths of the top and bottom slits can be set individually. However, the difference in cut size should be within 10 mm / 0.39". Only one-side cutting is not possible.

Cut

Cut range

Leading edge cut: 10 mm to 100 mm / 0.39" to 3.94" (Paper of 13 mm / 0.51" or more is cut multiple times.)

Rear edge cut: 10 mm to 13 mm / 0.39" to 0.51"

Minimum cut length

133 mm / 5.24" or more

Four Edge Trim (Slit + Cut)

Paper size

Before processing:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 1,300 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 51.18"

After processing (Finishing size):

Widthwise 120 mm to 314.2 mm, lengthwise 133 mm to 1,280 mm / Widthwise 4.72" to 12.37", lengthwise 5.24" to 50.39"

Paper weight

50 g/m² to 400 g/m² / 14 lb Bond to 106 lb Bond

* Paper of lengthwise 487.8 mm to 1,300 mm / lengthwise 19.2" to 51.18" is limited to 128 g/m² to 300 g/m² / 33 lb Bond to 81 lb Bond.

Four Edge Trim (2-sheet mode)

Paper size

A4 cutting of wide paper:

Widthwise 313 mm to 330.2 mm, lengthwise 445 mm to 459 mm^* / Widthwise 12.32" to 13", lengthwise 17.52" to 18.07"^*

*: Applied when the split width (width between cut sheets) is 5 mm to 13 mm. When split width is 0 mm: lengthwise 440 mm to 446 mm / lengthwise 17.32" to 17.56"

8.5 e 11 cutting of wide paper:

Widthwise 299.4 mm to 330.2 mm, lengthwise 456.8 mm to 470.8 mm^* / Widthwise 11.79" to 13", lengthwise 17.98" to 18.54"^*

*: Applied when the split width (width between cut sheets) is 5 mm to 13 mm. Split width = 0 mm: Lengthwise: 295.4 mm to 330.2 mm / lengthwise 11.63" to 13"

Paper weight

Conforms to Four Edge Trim (Slit + Cut).

Crease

Paper size

Crease only

Widthwise 140 mm to 330.2 mm, lengthwise 133 mm to 1,300 mm / Widthwise 5.51" to 13", lengthwise 5.24" to 51.18"

Crease + Four Edge Trim

Before processing:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 1,300 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 51.18"

After processing (Finishing size):

Widthwise 120 mm to 314.2 mm, lengthwise 133 mm to 1,280 mm / Widthwise 4.72" to 12.37", lengthwise 5.24" to 50.39"

Crease + Four Edge Trim + Gutter Slit

Before processing:

Widthwise 194 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 7.64" to 13", lengthwise 6.02" to 19.2"

After processing (Finishing size):

Widthwise 85 mm to 153.1 mm, lengthwise 133 mm to 467.7 mm / Widthwise 7.64" to 13", lengthwise 18.41" to 51.18"

Paper weight

80 g/m² to 400 g/m² / 21 lb Bond to 106 lb Bond

* Paper or uncoated paper of lengthwise 487.8 mm to 1,300 mm / lengthwise 19.2" to 51.18" is limited to 128 g/m² to 300 g/m² / 33 lb Bond to 81 lb Bond.

* Coated paper is limited to 157 g/m² to 300 g/m² / 33 lb Bond to 42 lb Bond.

Crease processing method

By 1 sheet

Number of creases

1 to 5

However, the following restrictions apply depending on the crease combination function.

Fold & Staple/Half-fold: 1 crease

Tri-Fold: 2 creases

Quarto-Fold, Gate, Double Gate: 4 creases

Crease only: 1 to 5

Minimum crease interval

1.0 mm / 0.04"

Crease processable range

60 mm / 2.36" from lead edge to 60 mm / 2.36" from rear edge

Range

0.1 mm

Slit trim (Four Edge Trim)

Paper size

Before processing:

1-line Four Edge Trim

Widthwise 194 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 7.64" to 13", lengthwise 6.02" to 19.2"

2-line Four Edge Trim

Widthwise 287 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 11.3" to 13", lengthwise 6.02" to 19.2"

After processing (Finishing size):

1-line Four Edge Trim

Widthwise 85 mm to 153.1 mm, lengthwise 133 mm to 467.7 mm / Widthwise 3.35" to 6.03", lengthwise 5.24" to 18.41"

2-line Four Edge Trim

Widthwise 85 mm to 99.4 mm, lengthwise 133 mm to 467.7 mm / Widthwise 3.35" to 3.91", lengthwise 5.24" to 18.41"

Paper weight

128 g/m² to 300 g/m² / 34 lb Bond to 81 lb Bond

Gutter width

8 mm / 0.31"

Setting units

0.1 mm

Banner paper conveyance and reverse

Paper size

Custom:

Widthwise 140 mm to 330.2 mm, lengthwise 487.8 mm to 1,300 mm / Widthwise 5.51" to 13", lengthwise 19.2" to 51.18"

Paper weight

128 g/m² to 300 g/m² / 34 lb Bond to 81 lb Bond

Reverse conveyance

Paper size

Custom:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 900 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 35.43"

* Banner Unit MK-764 is required for reverse conveyance of lengthwise 487.7 mm to 900 mm / lengthwise 19.2" to 35.43".

Paper weight

50 g/m² to 400 g/m² / 13 lb Bond to 106 lb Bond

* Paper of lengthwise 487.8 mm to 900 mm / lengthwise 19.2" to 51.18" is limited to 128 g/m² to 300 g/m² / 33 lb Bond to 81 lb Bond.

Subtray output

Paper size

Conforms to the through-path specifications.

Paper weight

Conforms to the through-path specifications.

Tray capacity (Secondary (sub) tray)

100 sheets (80 g/m² / 21 lb Bond, stack height 20 mm / 0.79")

*Stack of 49 g/m² / 13 lb Bond or less is not guaranteed. 1 sheet for paper of lengthwise 762.1 mm / 30" or larger.

Card creation (Cut + Gutter Slit)

Paper size

Before processing:

Widthwise 287 mm to 330.2 mm, lengthwise 400 mm to 457.2 mm^* / Widthwise 11.3" to 13", lengthwise 15.75" to 18"^*

*: Applied when the split width (width between cut sheets) is 5 mm to 13 mm. Split width = 0 mm: Widthwise 304.8 mm to 330.2 mm, lengthwise 370 mm to 411 mm / Widthwise 12" to 13", lengthwise 14.57" to 16.18"

After processing:

Widthwise 85 mm to 91 mm, lengthwise 50 mm to 55 mm / Widthwise 3.35" to 3.58", lengthwise 1.97" to 2.17"

Paper weight

177 g/m² to 300 g/m² / 48 lb Bond to 81 lb Bond

Finishing standard size

91 mm e 55 mm / 3.58" e 2.17", 85 mm e 55 mm / 3.35" e 2.17" or 89 mm e 51 mm / 3.5" e 2"

Number of finishing sheets

21 (Slit or divide in 7 columns e 3 rows for each sheet)

Top/bottom slit

8 mm to 26 mm / 0.31" to 1.02"

Lead/rear edge cut

10 mm to 13 mm / 0.39" to 0.51"

Gutter Slit

Feed direction: 8 mm (Fixed)

Crosswise direction: 0 mm or 5 mm to 13 mm

Tray capacity (Card tray)

504 sheets (168 sheets e 3 rows, 177 g/m² to 256 g/m² / 48 lb Bond to 68 lb Bond)

420 Sheets (140 sheets e 3 rows, 257 g/m² to 300 g/m² / 69 lb Bond to 81 lb Bond)

Paper type

Recommended paper for machine

Size

1,360 mm (W) e 747 mm (D) e 1,151 mm^* (H) / 53.54" (W) e 29.41" (D) e 45.31"^* (H)

*: Maximum height, excluding the tray part. The top height is 1,020 mm / 40.16".

Mass

Approx. 272 kg / 599.66 lb

Maximum mass including option: Approx. 328 kg / 723.12 lb

Power

DC 100 V, DC 5 V

Maximum power consumption

900 W

1

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.43"

Simplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Up

2

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.44"

Duplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Down

3

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.45"

Duplex

Available

Secondary (sub) tray of Trimmer Unit TU-510

Face Down

4

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.46"

Duplex

Available

Main tray of Finisher FS-541 or Output Tray OT-512

Secondary (sub) tray other than Trimmer Unit TU-510

Face Down

5

Lengthwise: 900 mm / 35.46" or more

Simplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Up
