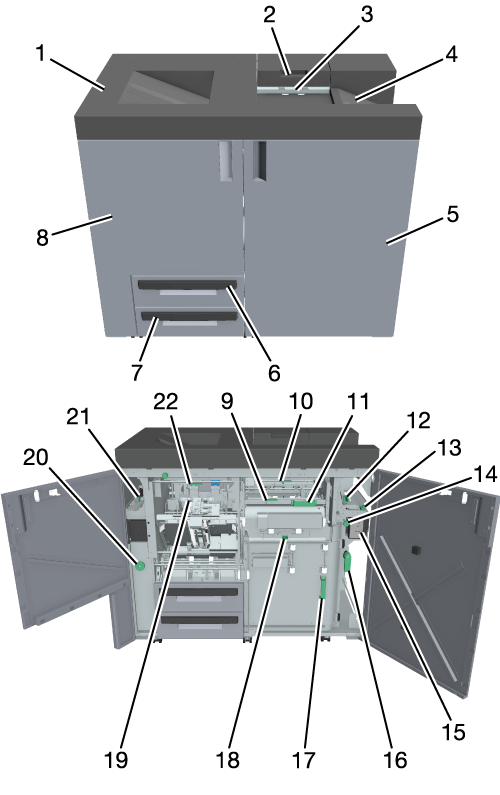

Saddle stitcher secondary (sub) tray

Ejects paper that is not processed in SaddleStitcher SD-506.

2

Multi Tri-Fold mode outlet cover handle

When clearing a paper jam, hold the handle, open the cover, and remove the paper.

3

Multi tri-fold mode tray

Ejects multi tri-fold paper.

4

Secondary (sub) tray

Stacks the paper ejected from the machine on the right side of SaddleStitcher SD-506.

5

Saddle stitcher right side door

When clearing a paper jam, open the door and remove the paper.

6

Conveyance belt

Pull out this tray when performing Half-fold/Saddle Stitch.

7

Trim scrap box

Pull out when discarding trim scrap.

8

Saddle stitcher left side door

Open this door when replenishing staples or clearing a paper jam.

9

Lever [SD11]

When clearing a paper jam in the folding unit, hold the lever, open the door, and remove the paper.

10

Lever [SD3]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

11

Handle [SD10]

When clearing a paper jam in the folding unit, hold the handle, and pull out.

12

Lever [SD2]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

13

Lever [SD1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

14

Knob [SD6]

When clearing a paper jam, turn the knob clockwise to feed the paper to the folding unit.

15

Jam position display

The location of the paper jam is indicated by a LED light.

16

Lever [SD7]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

17

Handle [SD8]

When clearing a paper jam, hold the handle, open the guide, and remove the paper.

18

Lever [SD9]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

19

Stapling unit

Staples half-fold paper.

20

Knob [SD15]

When clearing a paper jam, turn the knob clockwise to feed the paper through.

21

Lever [SD5]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

22

Lever [SD4]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

Name

SaddleStitcher SD-506

Format

Saddle Stitcher device with fore edge trimming and multi-folding

Function

Secondary (sub) tray output

Ejects to Secondary (sub) tray without processing.

Connected conveyance

Conveys paper to post-processing device without processing.

Fold & Staple

Fold & Staple bundled sheets for processing and output them.

Fold & Staple trim

Bundle Fold & Staple trim sheets for processing and output them.

Multi Half Fold

One sheet, or a bundle is half-folded and ejected.

Multi Half Fold trim

One sheet, or a bundle is half-folded, trim and ejected.

Multi Tri-Fold

One sheet, or a bundle is tri-folded and ejected.

Multi folding

Fold type

Multi Half Fold, Tri-fold

Paper Size

Half Fold:

Standard: SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 7.25 e 10.5 w, Foolscap^*, 8K w, 16K w

Custom: Widthwise 182 mm to 324 mm, lengthwise 257 mm to 463 mm / Widthwise 7.17" to 12.76", lengthwise 10.12" to 18.23"

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Tri-Fold:

A4 w, 8.5 e 11 w

Paper weight

Half-Fold: 50 g/m² to 244 g/m² / 13 lb Bond to 65 lb Bond Tri-Fold: 50 g/m² to 91 g/m² / 13 lb Bond to 24 lb Bond

Maximum number of multi fold sheets

Half-Fold/Tri-Fold: 5 sheets (50 g/m² to 81 g/m² / 13 lb Bond to 22 lb Bond)

Tri-Fold: 3 sheets (82 g/m² to 91 g/m² / 23 lb Bond to 24 lb Bond)

Half-Fold: 3 sheets (82 g/m² to 130 g/m² / 23 lb Bond to 34 lb Bond), 2 sheets (131 g/m² to 244 g/m² / 35 lb Bond to 65 lb Bond)

Load capacity

Half-fold: 30 sets, Tri-fold: 20 sets

Includes full detection function

Fold & Staple

Paper Size

Standard: SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w , 7.25 e 10.5 w, Foolscap^*, 8K w, 16K w

Custom: Widthwise 182 mm to 324 mm, lengthwise 257 mm to 463 mm / Widthwise 7.17" to 12.76", lengthwise 10.12" to 18.23"

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

50 g/m² to 244 g/m² / 13 lb Bond to 65 lb Bond

Staple position

Variable (90 mm to 165 mm / 3.54" to 6.5")

Trim

Paper Size

Standard: SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 7.25 e 10.5 w, Foolscap^*, 8K w, 16K w

Custom: Widthwise 182 mm to 324 mm, lengthwise 257 mm to 463 mm / Widthwise 7.17" to 12.76", lengthwise 10.12" to 18.23"

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

50 g/m² to 244 g/m² / 13 lb Bond to 65 lb Bond

Maximum cutting sheets

50 sheets (80 g/m² / 21 lb Bond) e 2 or {49 sheets (80 g/m² / 21 lb Bond) + 1 sheet (200 g/m² / 53 lb Bond)} e 2

Straight output

Paper Size

Standard: SRA3 w, A3 w , B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap^*, 8K w, 16K w/v

Custom: Widthwise 95 mm to 331 mm, lengthwise 139 mm to 488 mm / Widthwise 3.74" to 13.03", lengthwise 5.47" to 19.21"

Tab paper: A4T v, 8.5 e 11T v

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Weight

40 g/m² to 400 g/m² / 11 lb Bond to 106 lb Bond

* The paper type is limited to 351 g/m² to 400 g/m² / 94 lb Bond to 106 lb Bond.

Tray capacity

Secondary (sub) tray

200 sheets (80 g/m² / 21 lb Bond)

Z-Fold: 20 sheets (80 g/m² / 21 lb Bond)

Multi Half Fold: 40 sheets (80 g/m² / 21 lb Bond)

Fold/Staple mode tray (Fold & Staple)

2 to 10 sheet stitch: 50 sets or more

11 to 20 sheet stitch: 30 sets or more

21 to 40 sheet stitch: 20 sets or more

41 to 50 sheet stitch: 15 sets or more (includes full detection function)

Fold/Staple mode tray (Multi Half Fold)

30 sets (Includes full detection function)

Multi tri-fold mode tray

20 sets (Includes full detection function)

Size

With Conveyance belt housed: 1,170 mm (W) e 708 mm (D) e 1,020 mm (H) / 46.06" (W) e 27.87" (D) e 40.16" (H)

With Conveyance belt pulled out: 1,170 mm (W) e 1,441 mm (D) e 1,020 mm (H) / 46.06" (W) e 56.73" (D) e 40.16" (H)

Mass

Approx. 280 kg / 617.29 lb

Power

AC 100 V to 240 V, 50/60 Hz (supplied from power cord)

DC 24 V, 5 V (supplied from partial front stage)

Maximum power consumption

270 W

52 g/m² to 80 g/m² / 14 lb Bond to 21 lb Bond

50 sheets

49 +1 sheets

30 sheets

29 +1 sheets

30 sheets

29 +1 sheets

81 g/m² to 91 g/m² / 22 lb Bond to 24 lb Bond

30 sheets

29 +1 sheets

15 sheets

14 +1 sheets

30 sheets

29 +1 sheets

92 g/m² to 135 g/m² / 25 lb Bond to 36 lb Bond

20 sheets

19 +1 sheets

10 sheets

9 +1 sheets

10 sheets

9 +1 sheets

136 g/m² to 162 g/m² / 37 lb Bond to 43 lb Bond

15 sheets

14 +1 sheets

5 sheets

4 +1 sheets

5 sheets

4 +1 sheets

163 g/m² to 216 g/m² / 44 lb Bond to 57 lb Bond

10 sheets

-

-

-

-

-

217 g/m² to 256 g/m² / 58 lb Bond to 68 lb Bond

5 sheets

-

-

-

-

-

2 to 5 sheets

No regulation

45 mm

40 mm

35 mm

6 to 15 sheets

No regulation

No regulation

50 mm

45 mm

16 to 30 sheets

No regulation

No regulation

55 mm

50 mm

31 to 50 sheets

No regulation

No regulation

65 mm

60 mm

50 sheets (80 g/m² / 21 lb Bond) e 2

(49 sheets (80 g/m² / 21 lb Bond) + 1 sheet (200 g/m² / 53 lb Bond)) e 2

Multi Half Fold

52 g/m² to 81 g/m² / 14 lb Bond to 22 lb Bond

5 sheets

82 g/m² to 130 g/m² / 23 lb Bond to 35 lb Bond

3 sheets

131 g/m² to 244 g/m² / 36 lb Bond to 65 lb Bond

2 sheets

Multi Tri-Fold

52 g/m² to 81 g/m² / 14 lb Bond to 22 lb Bond

5 sheets

82 g/m² to 91 g/m² / 23 lb Bond to 24 lb Bond

3 sheets
