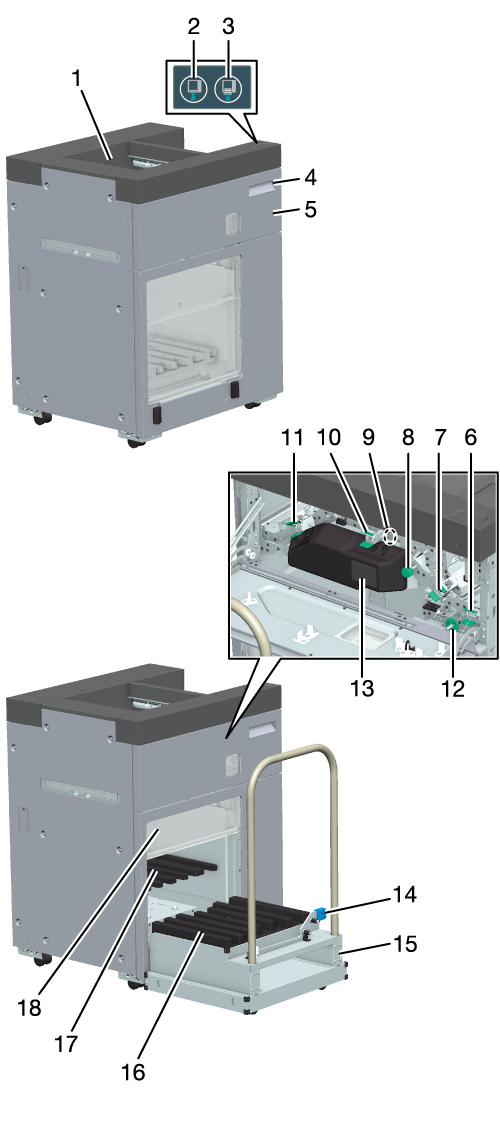

1

Secondary (sub) tray

Ejects paper without Offset.

2

Storage button

Press when housing the Output Tray.

3

Eject button

Press when removing paper in Stacker tray.

4

Upper Door Handle

Used when opening Top door.

5

Top door

When clearing a paper jam, open the door and remove the paper.

6

Lever [LS1]

When clearing a paper jam, hold the lever, open the cover and remove paper.

7

Lever [LS2]

When clearing a paper jam, hold the lever, open the cover and remove paper.

8

Knob [LS3]

When clearing a paper jam, turn the knob to feed the paper through.

9

Knob [LS4]

When clearing a paper jam, turn the knob to feed the paper through.

10

Lever [LS5]

When clearing a paper jam, hold the lever, open the cover and remove paper.

11

Lever [LS6]

When clearing a paper jam, hold the lever, open the cover and remove paper.

12

Knob

When clearing a paper jam, turn the knob to feed the paper through.

13

Jam position display

The location of the paper jam is indicated by a LED light.

14

Paper stopper

Paper collapse is prevented by holding the paper down.

15

Carriage

Paper is conveyed for each Output Tray.

16

Output Tray

Receives paper from Main tray, and outputs it outside the system.

17

Stacker tray (Main tray)

Stacks papers without Offset, or after Offset.

18

Output Paper Gate

Open when removing the stacked paper.

Name

Large Capacity Stacker LS-507

Format

Grip conveyor type horizontal stack device (maximum 2 connections allowed)

Function

Sort, Group, Offset Sort, Offset Group, Through-path

Tray 1 (Main tray) / Tray 2 (Output Tray)

Paper size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 v, A5 v, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 v, Foolscap*, 8K w, 16K v

Custom: Widthwise 210 mm to 330.2 mm, lengthwise 139 mm to 487.7 mm / Widthwise 8.27" to 13", lengthwise 5.47" to 19.2"

Tab paper: A4T v, 8.5 e 11T v

(Tabs 1 to 15. However, tap 4 and 10 are not available for use)

(In case of tab paper, offset is not allowed)

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

50 g/m² to 450 g/m² / 13 lb Bond to 119 lb Bond

Tray capacity

3,000 sheets

Load height

Paper of which the length in the paper feed direction is 194 mm / 7.64" or more: 310 mm / 12.2"

Paper of which the length in the paper feed direction is 194 mm / 7.64" or less: 230 mm / 9.06"

Secondary (sub) tray

Paper size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 w/v, Foolscap* , 8K w, 16K v

Custom: Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 487.7 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 19.2"

Fixed tab paper (back edge of tab during output is not guaranteed)

Wide paper, envelope

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 11 lb Bond to 119 lb Bond

Tray capacity

Load height: 28 mm / 1.1"

Through (Bypass)

Paper size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 w/v, Foolscap* , 8K w, 16K v

Custom: Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 51.18"

Fixed tab paper (back edge of tab during output is not guaranteed)

Wide paper, envelope

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 11 lb Bond to 119 lb Bond

Size

787 mm (W) e 705 mm (D) e 1,020 mm (H) / 30.98" (W) e 27.76" (D) e 40.16" (H)

Mass

160 kg / 352.74 lb

* Large Capacity Stacker LS-507 + Large Capacity Stacker Handcart LC-502: 180 kg / 396.83 lb

Power

AC 100 V to 240 V, 50/60 Hz (supplied from power cord)

DC 24 V, 5 V (supplied from partial front stage)

Maximum power consumption

240 W or less
