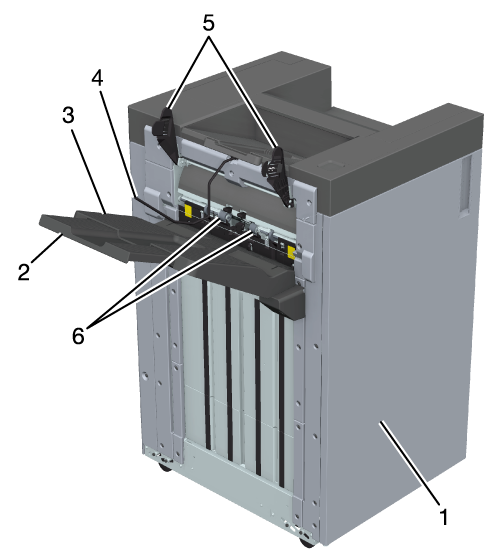

1

Finisher front door

When clearing a paper jam, open the door and remove the paper.

2

Primary (main) tray extension

Pull out when ejecting large sheets of paper to Main tray.

3

Main tray

Stacks papers without Offset, or after Offset.

4

Paper holder

Protects thin or curled paper ejected by Main tray.

5

Exit guides

Adjusts the paper feed crossing position for paper ejected by Main tray.

6

Gripper

Adjusts the position of the paper feed direction for paper ejected by Main tray.

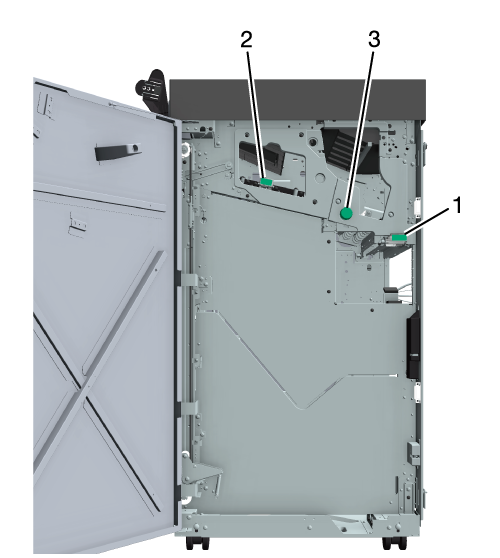

1

Lever [FS1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

2

Lever [FS2]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

3

Knob [FS3]

When clearing a paper jam, turn the knob to feed the paper through.

Name

Output Tray OT-512

Format

output/stacking tray with output arrangement function and elevator function

Function

Sort, Group, Offset Sort, Offset Group

Sort/Group

Output Tray

Tray 1 (Main tray)

Paper Size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap^*, 8K w, 16K w/v

Custom: Widthwise 95 mm to 331 mm, lengthwise 133 mm to 487.7 mm / Widthwise 3.74" to 13.03", lengthwise 5.24" to 19.2"

Fixed tab paper (back edge of tab during output is not guaranteed)

Wide paper

Banner paper (with Banner Output Tray Unit MK-761 mounted)

Widthwise 100 mm to 330 mm, lengthwise 487.8 mm to 1,300 mm / Widthwise 3.94" to 12.99", lengthwise 19.2" to 51.18"

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 11 lb Bond to 119 lb Bond

* The paper type is limited to 351 g/m² to 450 g/m² / 94 lb Bond to 119 lb Bond.

Offset Sort/Offset Group

Output Tray

Tray 1 (Main tray)

Paper Size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v , 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 v, Foolscap^*, 8K w, 16K w/v

Custom: Widthwise 148 mm to 331 mm, lengthwise 133 mm to 487.7 mm / Widthwise 5.83" to 13.03", lengthwise 5.24" to 19.2"

Fixed tab paper (back edge of tab during output is not guaranteed)

Wide paper

*: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 11 lb Bond to 119 lb Bond

* The paper type is limited to 351 g/m² to 450 g/m² / 94 lb Bond to 119 lb Bond.

Size

544 mm (W) ^* e 656 mm (D) e 1,020 mm (H) / 21.42" (W) ^* e 25.83" (D) e 40.16" (H)

*: 876 mm / 34.49" (including Main tray), 1,003 mm / 39.49" (including Primary (main) tray extension)

Mass

57 kg / 125.66 lb

Power

Supplied from front stage

Power consumption

120 W or less

Sort/Group (80 g/m² / 21 lb Bond)

Coated paper

Available

1,800 sheets

3,000 sheets

750 sheets

None

750 sheets

2,000 sheets

750 sheets

Uncoated paper

Available

2,000 sheets

3,000 sheets

750 sheets

None

2,000 sheets

4,200 sheets

750 sheets

Offset Sort or Offset Group (80 g/m² / 21 lb Bond)

Uncoated paper

-

1,500 sheets

1,500 sheets

750 sheets

Large size: A3 w, B4 w*, 8 e 13 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, SRA3 w, SRA4 w/v, 13 e 19 w, 8K w

Small size: A4 w/v, B5 w/v*, 8.5 e 11 w/v, 9 e 11, 16K w/v

Extra-small size: A5 w/v, B6w*, 5.5 e 8.5 w/v

*: Series B paper is set to JIS or ISO standard size by default. This setting differs depending on the shipping region. For JIS/ISO switching, contact your service representative.

Sort/Group/Offset Sort/Offset Group

128 g/m² to 135 g/m² / 34 lb Bond to 36 lb Bond

1,000 sheets

100 sheets

136 g/m² to 175 g/m² / 37 lb Bond to 46 lb Bond

760 sheets

80 sheets

176 g/m² to 216 g/m² / 47 lb Bond to 57 lb Bond

600 sheets

60 sheets

217 g/m² to 256 g/m² / 58 lb Bond to 68 lb Bond

500 sheets

50 sheets

257 g/m² to 300 g/m² / 69 lb Bond to 81 lb Bond

400 sheets

40 sheets
