Relay Unit RU-702

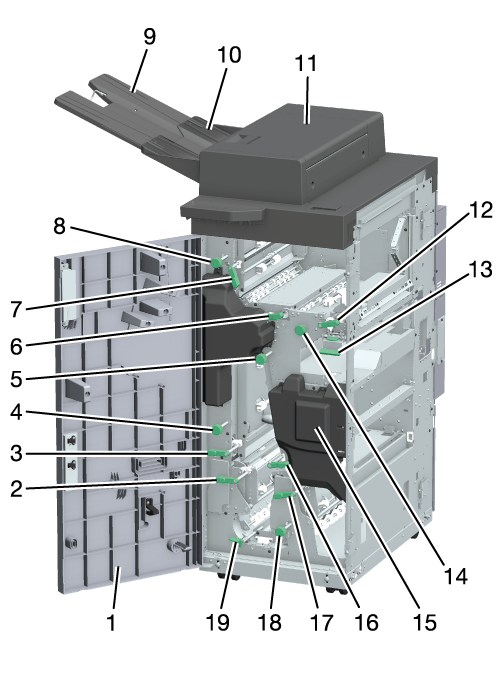

Name and Function of Each Component
No. | Name | Description |
|---|---|---|
1 | Relay unit front door | When clearing a paper jam, open the door and remove the paper. |
2 | Lever [RU12] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
3 | Lever [RU13] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
4 | Knob [RU14] | When clearing a paper jam, turn the knob to feed the paper through. |
5 | Knob [RU7] | When clearing a paper jam, turn the knob to feed the paper through. |
6 | Lever [RU4] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
7 | Lever [RU5] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
8 | Knob [RU6] | When clearing a paper jam, turn the knob to feed the paper through. |
9 | Purge tray extension | Pull out during automatic inspection of large-size paper. |
10 | Purge tray | Ejects output paper that does not meet the standard. |
11 | Top cover | When clearing a paper jam, open the cover and remove the paper. |
12 | Lever [RU1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
13 | Lever [RU2] | When clearing a paper jam, squeeze the lever, open the guide, and remove the paper. |
14 | Knob [RU3] | When clearing a paper jam, turn the knob to feed the paper through. |
15 | Jam position display | The location of the paper jam is indicated by a LED light. |
16 | Lever [RU8] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
17 | Lever [RU9] | When clearing a paper jam, pull out the lever upward, open the guide, and remove the paper. |
18 | Knob [RU10] | When clearing a paper jam, turn the knob to feed the paper through. |
19 | Lever [RU11] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
Specifications
Name | Relay Unit RU-702 | |
Format | Relay conveyance unit with purge tray | |
Function | Straight conveyor | It provides accelerated conveyance at post-processing basic linear speed. |
Paper feeding for automatic inspection | Determines image defects while conveying paper feed route for automatic inspection. | |
Purge tray output | Outputs the paper detected as abnormal in automatic inspection to Purge tray. | |
Paper Size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap*, 8K w, 16K w/v Custom: Straight conveyor Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 51.18" Purge tray output/Paper feeding route for automatic inspection Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 487.7 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 19.2" Tab paper: A4T w/v, 8.5 e 11T w/v *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. | |
Paper type | Recommended paper for machine | |
Paper weight | 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond | |
Tray capacity (Purge tray) | 100 sheets (80 g/m2 / 21 lb Bond, stack height 20 mm / 0.79") *Stack of 49 g/m2 / 13 lb Bond or less is not guaranteed. | |
Size | 410 mm (W) e 787.2 mm (D) e 1,135 mm (H) / 16.14" (W) e 30.99" (D) e 44.69" (H) *Output tray, not including protrusion. Including duct. | |
Mass | Approx. 85 kg / 187.39 lb | |
Power | AC 100 V to 240 V, 50/60 Hz (supplied from power cord) DC 24 V, 5 V (supplied from front stage) DC 24 V, 5 V (supplied to next stage) | |
Maximum power consumption | 600 W or less (including next stage connection options) | |
