[2-Side Slitting]
Overview
Configure the setting to slit both edges of a booklet.
Tips
Booklet printing is not available when
- the imposed image has a different controller image compression setting (Gradation Priority/Resolution Priority).
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted | ||
Required items | - | ||
Setting items | [ON] | Slits both edges of a booklet. | |
[OFF] | Does not slit both edges of a booklet. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Booklet] | ||
Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Booklet] | |||
Procedure

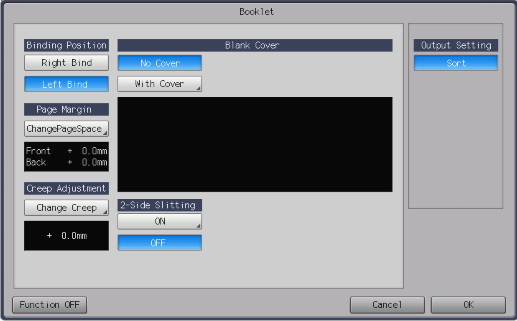

Set [Slitting] and [Offset against Cover].
1
Press [ON].

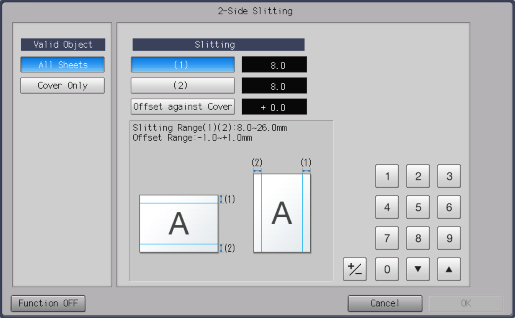

The setting screen is displayed.
2
Select [(1)] or [(2)] of [Slitting], and use the on-screen keypad to enter the slitting amount.
Range: 8.0 mm to 26.0 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
When the slitting amount is different between [(1)] and [(2)] by 10.0 mm or more, its value cannot be entered.
3
Select [Offset against Cover], and use the on-screen keypad to enter the slitting amount of the body for the cover.
Range: -1.0 mm to 1.0 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
4
Press [OK].
