User's Guide

> JOB LIST > [Job Ticket] - [Job Ticket Edit] > [Punch] > Screen

Screen

Overview
Screen Access
Screen

Overview

Set the number of punch holes and the punch position.

The available items vary depending on the optional devices mounted on this system.

Screen Access

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Punch]

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Punch]

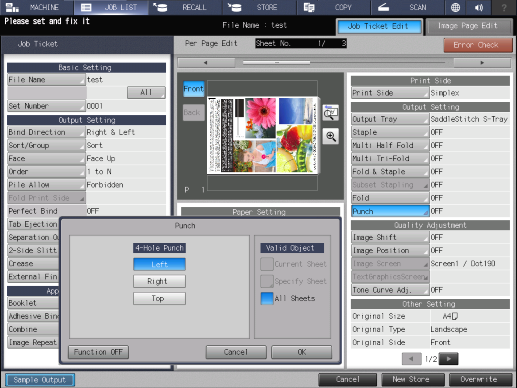

Screen

With FoldingUnit FD-503/Finisher FS-541 mounted

North America:

Europe and other countries:

4-Hole Punch for Sweden: Available only for Sweden.

Common keys

Key name

Description

[Function OFF]

Turns the function off while maintaining the set information.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.
