[Output Tray] Setting

Overview

Select an output tray.

NOTICE

Each output tray has a limit in capacity. Be careful not to exceed the limit, otherwise unexpected trouble may be caused.

NOTICE

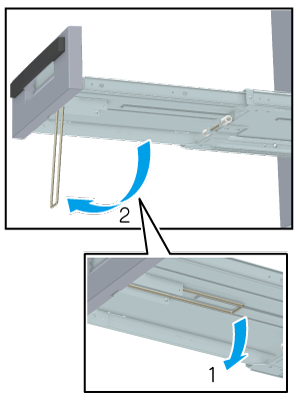

When using the Conveyance belt of SaddleStitcher SD-506, be sure to set up the stand under the tray.
Never push the tray to its original position while the stand of the Conveyance belt of SaddleStitcher SD-506 remains set up.

Tips

The displayed output tray varies depending on models or optional devices mounted on this system.

When Large Capacity Stacker LS-507 is mounted, [Pile Set] is displayed.
When 2 units of Large Capacity Stacker LS-507 are mounted, [Stacker Auto] is displayed.

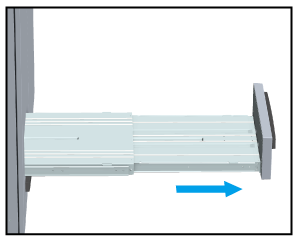

When Conveyance belt of SaddleStitcher SD-506 is selected, withdraw the tray.

Specifications

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		Output tray selection key	Select the output tray from the front view of the machine. The selected output tray key is highlighted.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Output Tray]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Output Tray]
