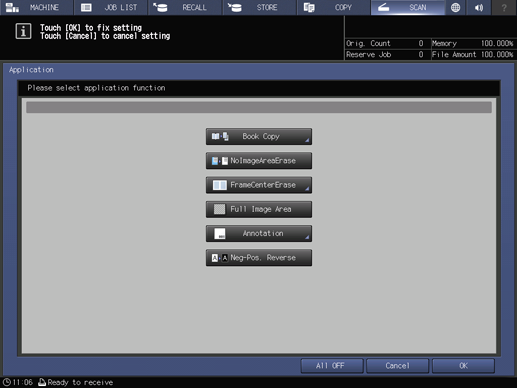

Application

Configure any Application setting to scan data.

Pressing All OFF turns all application functions off.

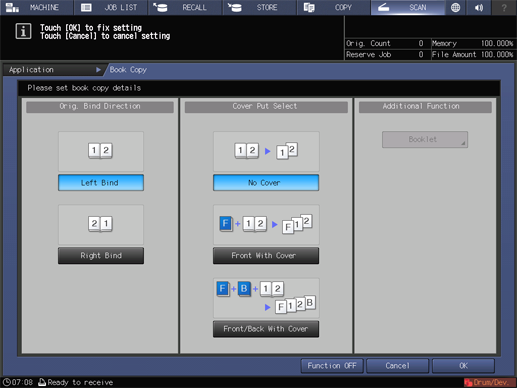

Book Copy
Orig. Bind Direction: Left Bind, Right Bind
Cover Put Select: No Cover, Front With Cover, Front/Back With Cover
In scan mode, Booklet cannot be selected in Additional Function.

No Image Area Erase

Frame Center Erase
Function Selection: Erase/All Sides, Erase/Each Side, Center Erase

Erase Width Setting
With Erase/All Sides selected: Collectively specify the erase width in the range of 1 mm to 300 mm for Top, Bottom, Right, Left.
With Erase/Each Side selected: Individually specify the erase width in range of 1 mm to 300 mm for Top, Bottom, Right, Left.
With Center Erase selected: Specify the erase width in the range of 1 mm to 99 mm.

Full Image Area

Annotation
Annotation Select
Recalls Annotation Setting registered in Utility/Counter - Administrator Setting - System Setting - Annotation Setting.
Temp.No.Set
Press this button to temporarily change Annotation Number that is registered, then enter the changed number.
Print Pos. Setting
Specify the desired annotation printing position.
Fine Adjustment
Fine-adjusts the annotation printing position.

Neg-Pos. Reverse
This option is not available when Full Color or Auto Color is selected in Color.

OK
Applies the setting.

Cancel
Cancels the setting.

Function OFF
Turns the function of the selected setting off when Function OFF is pressed on the individual setting screen.

Reference

For details, refer to Annotation Setting.
