Weekly Timer ON/OFF Setting

The Weekly Timer is a management function provided in Administrator Setting, which shuts down the machine power on a daily or hourly basis.

In this section, specify whether or not to use the Weekly Timer. The Weekly Timer is not activated as factory default.

Conditions required to use the Weekly Timer:

  • The power plug is inserted into the wall socket. The Weekly Timer does not function when the power plug is disconnected, while the data such as the ON/OFF time are stored.

  • The sub power switch is turned on.

  • The current date and time are correctly set.

Tips

  • When the Weekly Timer ON/OFF Setting is set to Weekly Timer ON, Power Save Setting - ErP Setting cannot be set.

Reference

  1. Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

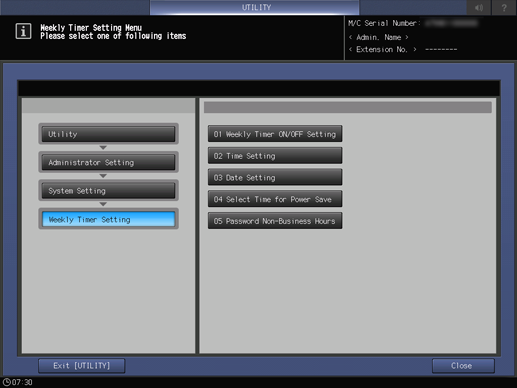

  2. Press System Setting on the Administrator Setting Menu screen, and then press Weekly Timer Setting and Weekly Timer ON/OFF Setting in sequence.

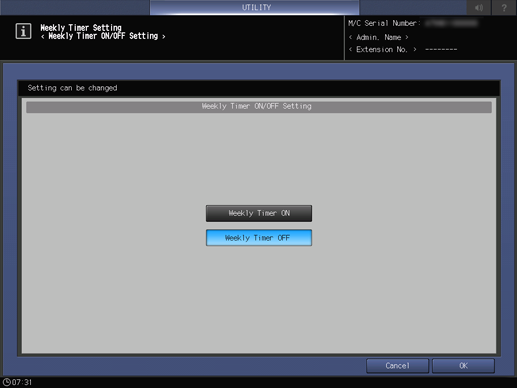

  3. Select either Weekly Timer ON or Weekly Timer OFF.

    • supplementary explanationThe default setting is Weekly Timer OFF. Selecting Weekly Timer ON will activate the Weekly Timer. For the machine with the Weekly Timer activated, the sub power switch should be kept turned on. Selecting Weekly Timer OFF will deactivate the Weekly Timer. Use the sub power switch to turn on/off the machine power.

  4. Press OK to complete the setting.

    • supplementary explanationTo cancel the change, press Cancel.

    In either case, the screen returns to the Weekly Timer Setting Menu screen.
