Web Access IP Filtering

Set IP filtering for Web Utilities of the Auto Inspection Unit UK-301.

Specify the allowable range of the IP address to restrict accesses from IP addresses outside the specified range. This option can be synchronized with the subnet mask.

No Filtering: Connect communications from all IP addresses.

Sync. IP Address: Restricts the connectable IP addresses by specifying the IPv4 allowable range based on the IP address specified in Web Utilities of Auto Inspection Unit UK-301.

Sync. Subnet Mask: Restricts the range of connectable IP addresses using the IP address and subnet mask specified in Web Utilities of Auto Inspection Unit UK-301.

1. Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

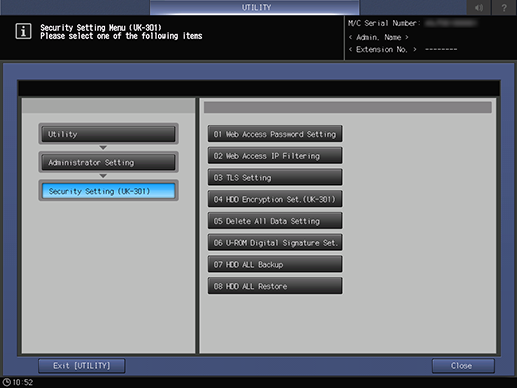

2. Press Security Setting (UK-301) on the Administrator Setting Menu screen, and then press Web Access IP Filtering.

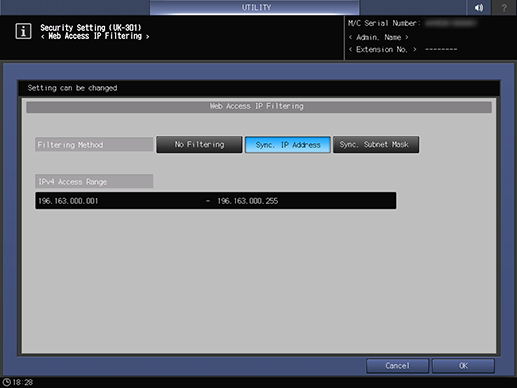

3. Select the desired filtering method.

   • supplementary explanationSelect either No Filtering, Sync. IP Address, or Sync. Subnet Mask.



4. Press OK to complete the setting.

   • supplementary explanationTo apply the allowable range of the IPv4 IP address, select Sync. IP Address or Sync. Subnet Mask, and press OK.

   • supplementary explanationTo cancel the change, press Cancel.

   In either case, the screen returns to the Security Setting Menu (UK-301) screen.
