ErrorImageStoringSet.(UK301)

Specify whether the administrator can allow the service representative to save logs when a service call occurs. To store logs, specify whether to mask the image.

This menu item is to be displayed and become configurable when Auto Inspection Unit UK-301 is mounted.

  1. Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

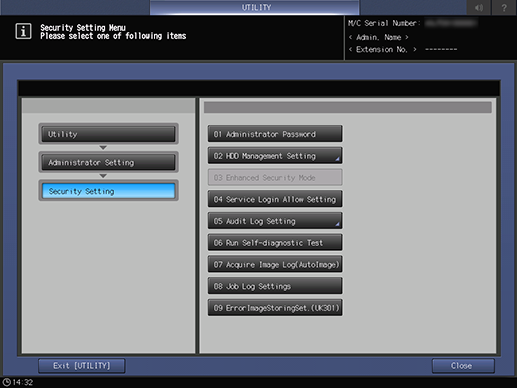

  2. Press Security Setting on the Administrator Setting Menu screen, and then press ErrorImageStoringSet.(UK301).

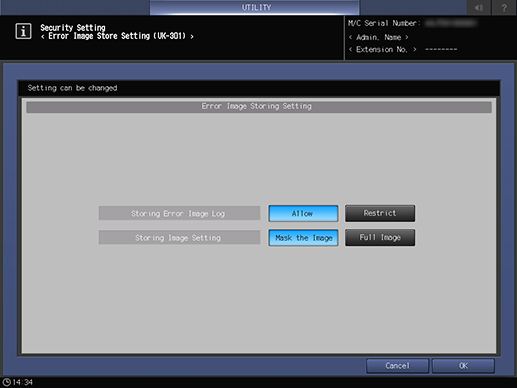

    The Error Image Store Setting (UK-301) screen is displayed.

  3. Select either Allow or Restrict for Storing Error Image Log.

    • supplementary explanationIf you select Allow, also configure Storing Image Setting.

    Storing Error Image Log: Specify whether to allow log storage when a service call occurs. The stored logs are used to help the service representative's work.

    Storing Image Setting: Specify this option to mask an image to be stored as a log. If Mask the Image is selected, the image is stored with all areas within 1mm from the paper edge blackened. If Full Image is selected, the image is stored with no areas blackened. This item is only available when there is no problem even if the image comes someone's attention.

  4. Press OK to complete the setting.

    • supplementary explanationTo cancel the change, press Cancel.

    In either case, the screen returns to the Security Setting Menu screen.
