Delete All Data Setting
Select the erase mode to overwrite data on the HDD or the non-volatile memory of the Auto Inspection Unit UK-301 with specific data and delete it. Also execute deleting all the data. This function prevents information from being leaked when a leased machine is returned.
Tips
If you want to use this function, contact your service representative.
Item | Description |
|---|---|
Mode 1 | Overwrites with 0x00 |
Mode 2 | Overwrites with a single random digit - Overwrites with a single random digit - Overwrites with 0x00 |
Mode 3 | Overwrites with 0x00 - Overwrites with 0xff - Overwrites with a single random digit - Verification |
Mode 4 | Overwrites with a single random digit - Overwrites with 0x00 - Overwrites with 0xff |
Mode 5 | Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff |
Mode 6 | Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with random digits |
Mode 7 | Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0xaa |
Mode 8 | Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0x00 - Overwrites with 0xff - Overwrites with 0xaa - Verification |
Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

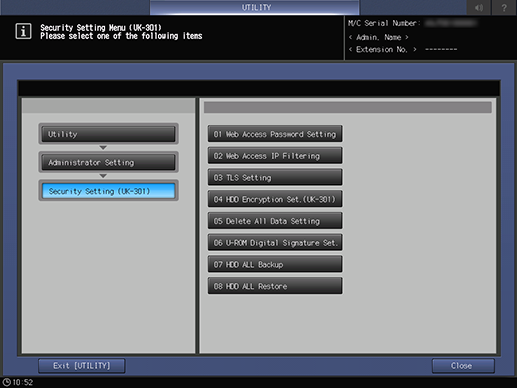

Press Security Setting (UK-301) on the Administrator Setting Menu screen, and then press Delete All Data Setting.

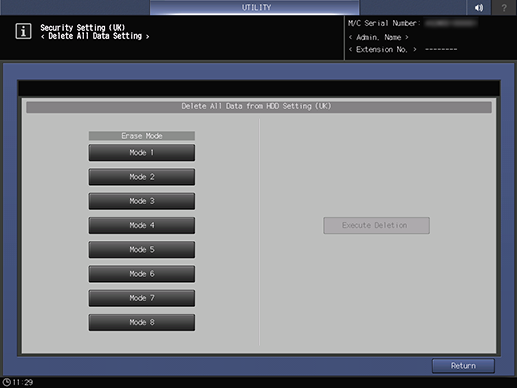

The Delete All Data from HDD Setting screen is displayed.
Select the desired erase mode from Mode 1 to Mode 8 provided as Erase Mode.
Press Execute Deletion.
NOTICE
If you delete data using the Execute Deletion, no data on HDD can be used again. Save all the necessary data to another device in advance.
Press Return to return to the Security Setting Menu (UK-301) screen.
