Pre-registration Adj.

Adjust the paper loop amount in pre-registration roller section of the trays. This adjustment is required when the printed paper shows skew or wrinkles or when a paper jam occurs in the registration roller section.

Objects of Adjustment: Not Thin Paper, Thin Paper

Tray 1 to Tray 11

Adjustment Range: -10 (Short) to +10 (Long) (1 step = 1.0 mm)

1. Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

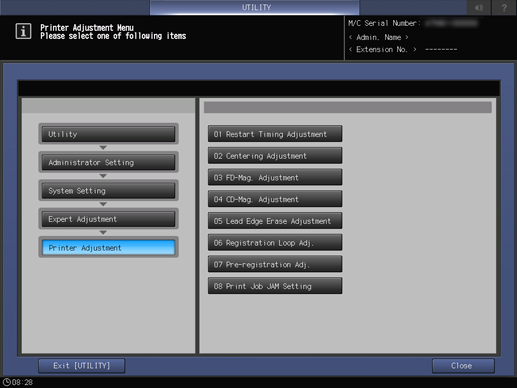

2. Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, Printer Adjustment, and Pre-registration Adj. in sequence.

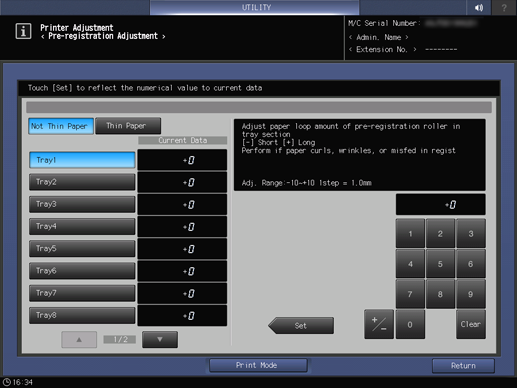

   The Pre-registration Adjustment screen is displayed.

3. Press the key of the item to be adjusted.

4. Press Print Mode.

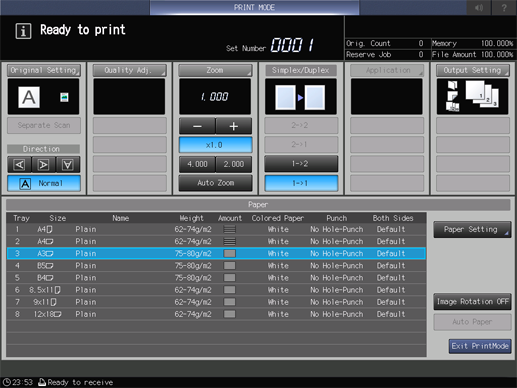

   The PRINT MODE screen is displayed.

5. Set A3 short edge feed or 11 17 short edge feed paper into the tray to be adjusted, select that tray and then press Start on the control panel.

   A sample pattern will be output.

6. Check the sample pattern.

7. If any adjustment is required, press Exit PrintMode to return to the Pre-registration Adjustment screen.

8. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

   • supplementary explanationUse +/- to specify the value to be positive or negative.

   • supplementary explanationPress Set to change the Current Value.

9. Repeat steps 4 to 8 until the desired result is obtained.

10. Press Return to return to the Printer Adjustment Menu screen.
