User Mode Screen

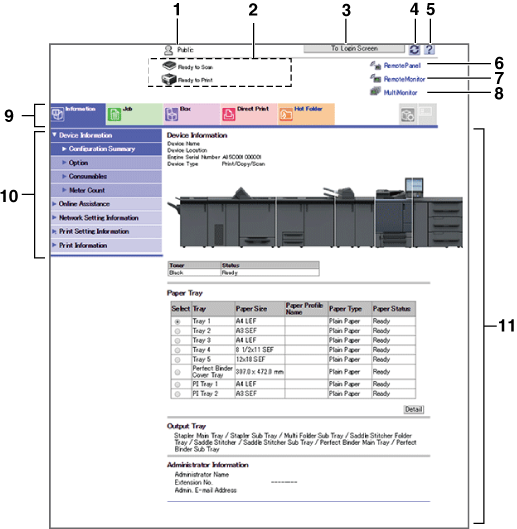

After the login to Web Connection, a screen such as shown below is displayed. The following shows an example of the screen displayed when Device Information is selected in the Information tab.

Tips

  • The contents of the Web Connection screen vary depending on the options installed on the machine or on the settings of the machine.

  • This section describes the screen configuration using the screen displayed in Flash format.

No.

Item

Description

1

Login user name

Displays the icon of the current mode and the name of the user who is logged on (public, administrator, registered user, or account). Click the user name to display the login user name.

2

Status display

Displays the status of the printer and scanner sections of this machine with icons and messages. Clicking the desired icon when an error occurs displays the information (Consumable Info, Paper Tray) associated with the icon to enable you to check the status.

3

To Login Screen

Click this button to log out the current mode and log in again.

4

Refresh

Click this icon to refresh the information displayed in the screen.

5

Manual

Displays the online documentation of Web Connection. The documentation concisely describes supported operating systems. and the browser settings and their contents. To view the online documentation, specify it in administrator mode. For details, refer to Register Support Information.

6

Remote Panel

Displays the touch panel screen on the machine so that the remote control is allowed. For details about presetting and how to use, refer to Overview of Remote Panel.

7

Remote Monitor

Displays a thumbnail of the touch panel screen on the machine to monitor the status of the machine by automatic reloading. For details about presetting and how to use, refer to Remote Monitor: Setup.

8

Multi Monitor

Displays a tile view of multiple remote monitors so that the status of multiple machines can be monitored at a time. In addition, you can select one machine to display its remote panel at the same time. For details about presetting and how to use, refer to Multi Monitor: Setup.

9

Tabs

Select the category of the item to be displayed. The following icons are displayed in the user mode.

  • Information

  • Job

  • Box

  • Direct Print

  • Hot Folder

  • Customize

  • Main Menu

10

Menu

Displays information and setting for the selected tab. The menu that is displayed in this area varies depending on which tab was selected.

11

Information and settings

Displays the details of the item selected in the menu.

For details about each tab, refer to each of the following pages.
