PKI Settings: SSL Setting

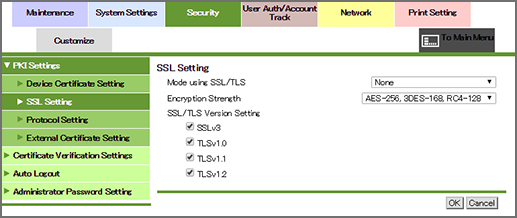

Click PKI Settings - SSL Setting on the menu of Security tab to display this screen.

Set the usage mode and the encryption strength for an installed certificate.

Select a mode from the Mode Using SSL/TLS drop-down list.
- supplementary explanationThis menu is not displayed without any SSL certificate installed. (Except for ones shown as Requesting Certificate.)
Select an encryption strength from the Encryption Strength drop-down list.
Select the checkbox of the SSL version to be used.
Click OK. Clicking Cancel cancels the setting.
Click OK on the setting complete screen.
