Scanner Settings

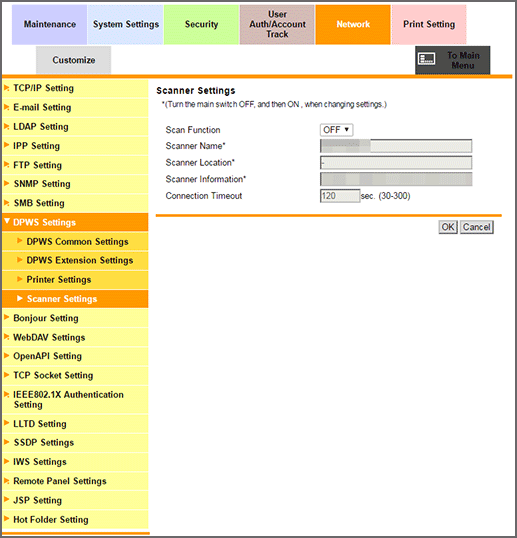

Click DPWS Settings - Scanner Settings on the menu of Network tab to display this screen.

This screen allows you to configure settings to scan data via the Web service.

If you want to scan data using Web service, select ON from the Scan Function drop-down list.
Enter a Scanner Name. Up to 63 one-byte characters can be used.
If necessary, enter Scanner Location, Scanner Information, and Connection Timeout.
Click OK. Clicking Cancel cancels the setting.
Click OK on the setting complete screen.
If you have changed any setting with an asterisk *, turn the machine power off then on.
