IEEE802.1X Authentication Trial

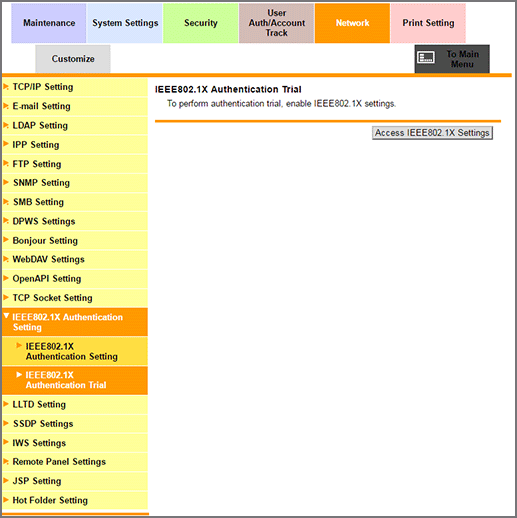

Click IEEE802.1X Authentication Setting - IEEE802.1X Authentication Trial in the Network tab to display this screen.

Perform the trial of IEEE802.1X authentication.

  1. If OFF is selected for the IEEE802.1X Authentication Setting, the IEEE802.1X Authentication Trial can-not be performed. Click IEEE802.1X Authentication Setting to switch the setting to ON.

  2. Press Authentication Trial.

    The current authentication status is displayed in Auth. Status. Refer to the table below for confirmation.

    Item

    Description

    Prior confirmation

    Auth. Status

    Displays the authentication status.

    • Authenticated: Displayed when authentication is completed successfully.

    • Now authenticating: Displayed when authentication is in process.

    • Unauthenticated: Displayed when authentication is not yet made.

    • Authentication Failed: Displayed when authentication has failed.

    • Failed to Retrieve Status: Displayed when failed in getting the authentication status.

    Click Update to display the current authentication status.
