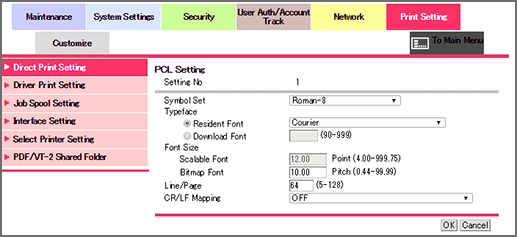

PCL Setting

This setting can be made also from Controller on the MACHINE screen. For details about the setting, refer to PCL Setting.

1. Click Edit in the PCL Setting column.

2. Select a font symbol set from the drop down list of Symbol Set.

3. Select either embedded fonts (Resident Font) or downloaded fonts (Download Font) for Typeface. When selecting Resident Font, select the desired font from the drop down list. When selecting Download Font, specify the number of the desired downloaded font.

4. Enter the size of scalable font (4.00 pt to 999.75 pt) in the Scalable Font text box.

5. Enter the size of bitmap font (0.44 pitch to 99.99 pitch) in the Bitmap Font text box.

6. Enter the lines per page (5 to 128) in the Line/Page text box.

7. Using the CR/LF Mapping drop down list, specify how to manage the replacement of CR (carriage return) and LF (line feed) in text data.

8. Click OK. Clicking Cancel cancels the setting.

9. Click OK on the setting complete screen.
