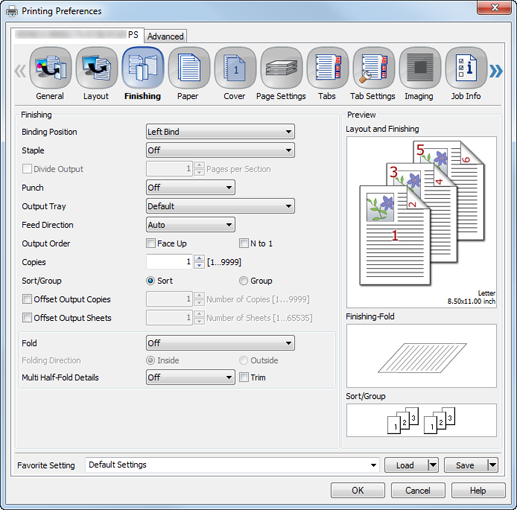

Finishing Screen

Binding Position

Left Bind, Right Bind, Top Bind

Set this to specify the binding position.

Staple

Off, Corner, 2 Positions (Wide), 2 Positions (Narrow), 2 Positions (Narrow+)

Set this to specify stapling.

From the drop-down list, specify the number of staples and the stapling position.

Divide Output

Off, On

Set this to output a job with it divided.

Pages per Section

Specify a unit when dividing a job . (1 to 9999)

Punch

Off, 2-Hole, 3-Hole, 4-Hole, Multi Punch, Double Punch

Set this to specify hole punching.

From the drop-down list, specify the number of punches and the punching position.

Ring Binding

Off, On

Set this to bind the printed paper using ring-shaped binder.

Printed Side for Top Sheet

Outside, Inside

Specify the printed side of the top sheet when the Ring Binding is set.
Inside: Prints document on inside of the top sheet.
Outside: Prints document on outside of the top sheet.

Printed Side for Last Sheet

Inside, Outside

Specify the printed side of the last sheet when the Ring Binding is set.
Inside: Prints document on inside of the last sheet.
Outside: Prints document on outside of the last sheet.

Output Tray

Default, Stacker Auto, Stacker 1 Main Tray, Stacker 1 Sub Tray, Stacker 2 Main Tray, Stacker 2 Sub Tray, Stacker 3 Main Tray, Stacker 3 Sub Tray, Multi Folder Main Tray, Multi Folder Sub Tray, Saddle-Stitcher Sub Tray, Stapler Main Tray, Stapler Sub Tray, Perfect Binder Sub Tray, Open Stacker Main Tray, External Finisher, Relay Unit 3A Sub Tray, Relay Unit 3B Sub Tray

Select the tray to output the printed pages. Selectable items vary depending on the mounted optional device.

Feed Direction

Auto, Long Edge, Short Edge

Set a direction to feed paper.

Output Order

Face Up

Select Face Up to output printed paper with its face up.

N to 1

If you want to print an original in a reverse order, select N to 1.

Copies

1 to 9999

Specify the number of copies.

Sort/Group

Sort, Group

Set this to collate pages sequentially when printing multiple sets of copies.

Offset Output Copies

Off, On (1 to 9999)

Stagger after each set of copies specified. (For details, refer to the following table.)

Offset Output Sheets

Off, On (1 to 65535)

Stagger after the number of pages specified. (For details, refer to the following table.)

Pile Permission

Off, On

When selected On, other jobs can be printed and are permitted to be piled up on the stacker.
When turned Off, the next job cannot be printed until the current job is removed from the stacker.

External Finisher

Off, On

Select this option to use the External Finisher.

Fold

Off, Half-Fold, Z-Fold, Tri-Fold-In, Tri-Fold-Out, Double Parallel-Fold, Gate-Fold, Multi Tri-Fold, Multi Half-Fold

Set the fold function.

From the drop-down list, select the folding condition.

Folding Direction

Inside, Outside

Select whether to set the folding direction to Inside or Outside.

Multi Half-Fold Details

Fold and Staple

Off, 2 Positions, 4 Positions

Specify the number of staple positions when Fold and Staple is specified.

Trim

Off, On

Trims and aligns edges of the paper folded in half when Multi Half-Fold (Fold and Staple) is selected.

Output Copies
(Set unit)

1

1

3

Offset Output Copies

2

1

2

Offset Output Sheets

― ^*

2

― ^*

Sort/Group

Sort

Sort

Sort

Output Copies
(Set unit)

2

4

4

Offset Output Copies

1

3

3

Offset Output Sheets

2

― ^*

― ^*

Sort/Group

Sort

Sort

Group
