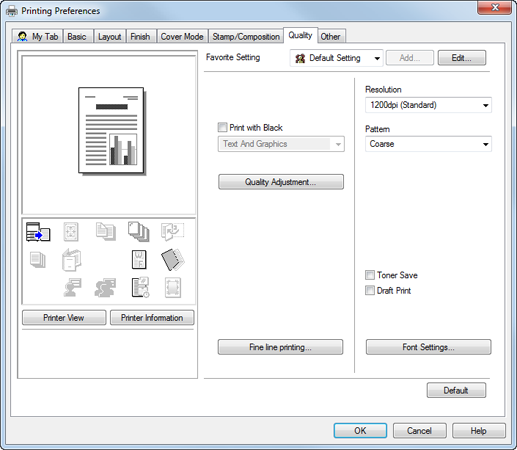

Quality screen

Print with Black

Off, On

Text only, Text And Graphics, All

Prevents faint printing of colored text, lines and figures according to the selected settings.

Quality Adjustment

-

Specify Screen Settings, Auto Image Adjustment, Tone Curve Settings, and Density. You can also acquire machine information and reflect it.

Fine line printing

-

Specify the following fine line printing types.

Smoothing

Smoothly prints the outline of text with density of 100%, such as K=100%, and line images.

Thinning

Select this check box to control the boldness of the text or line images.

Emphasis

The outline of text in gray and figures are printed sharply.

Resolution

1200dpi (High Quality), 600dpi (High Quality), 1200dpi (Standard), 600dpi (Standard)

Selects a resolution.

• When High Quality is selected, the image quality increases. However, printing may take longer.

Pattern

Fine, Coarse

Specify fineness of the graphic patterns.

Toner Save

Off, On

Prints with the density that matches toner saving.

It corresponds with Quality Adjustment-2.

Draft Print

Off, On

Prints with the density for draft.

It corresponds with Quality Adjustment-4.

Font Setting

-

Specify the font type to be downloaded or the True Type Font Substitution Table.
