Edge Emphasis: Clearing Character Border

Edge emphasis setting (PS Plug-in Driver)



  • Outline Process: Halftone Text Enhancement

The Windows 7 screen is used for explanation purposes.

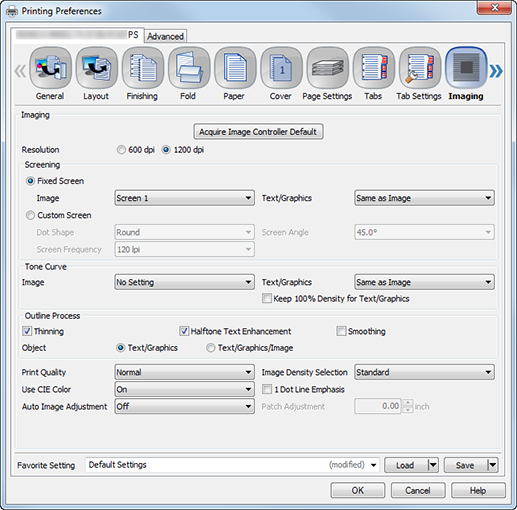

  1. Click the Imaging tab.

  2. Select the Halftone Text Enhancement check box in Outline Process.

  3. Select Text/Graphics or Text/Graphics/Image as a setting target.

  4. Click OK to make prints.

Edge emphasis setting (PPD Driver)

  • Emphasis

The Windows 7 screen is used for explanation purposes.

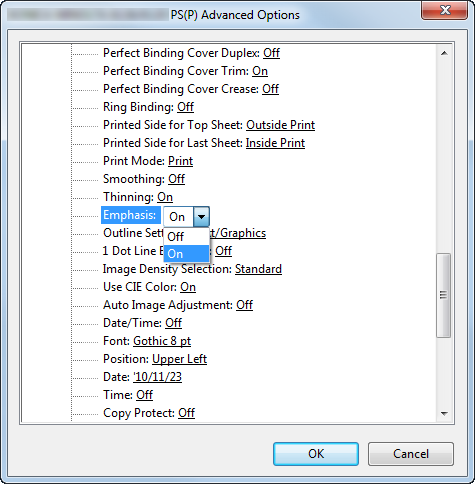

  1. Click Advanced.

  2. Set Emphasis to On.

  3. Click OK to make prints.

Edge emphasis setting (PCL Driver)

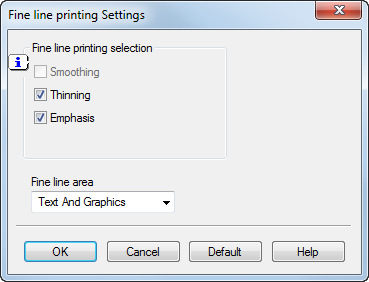

  • Fine line printing: Emphasis

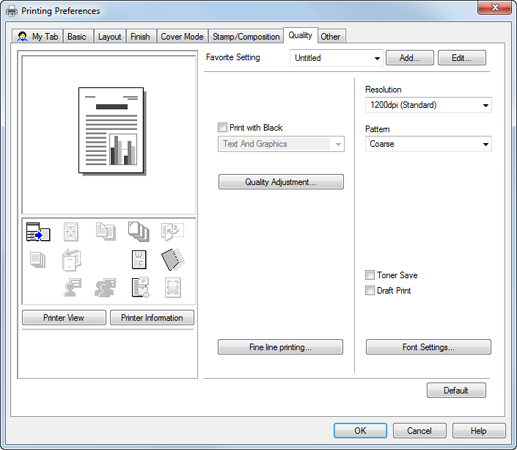

  1. Click the Quality tab.

  2. Click Fine line printing.

  3. Select the Emphasis check box.

  4. Select Text And Graphics or All as a fine line area.

  5. Click OK to make prints.
