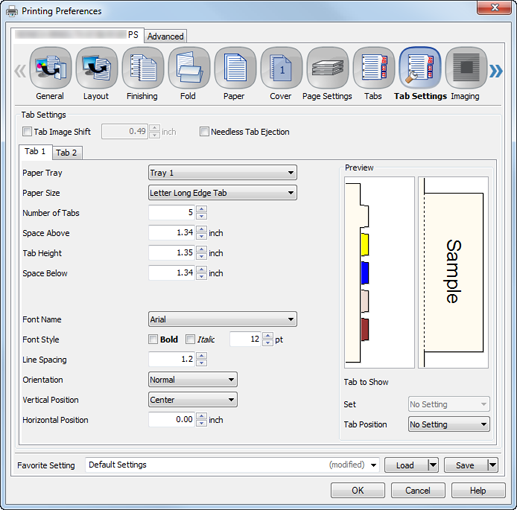

Tab Settings Screen

Tab Image Shift

Off, On (10.0 mm to 15.0 mm)

Select this check box to shift an image on a tab to the right.

Needless Tab Ejection

Off, On

Select this check box to eject a needless tab to an output tray.

Tab 1/Tab 2

-

You can define 2 types of tab.

For example, 5 for Tab 1 and 15 for Tab 2.

Paper Tray

Tray 1, Tray 2, Tray 3, Tray 4, Tray 5, Tray 6, Tray 7, Tray 8, Tray 9, Tray 10, Tray 11

Select a paper tray for a tab.

Paper Size

A4 Long Edge Tab 12.7 mm, A4 Long Edge Tab 15.0 mm, A4 Short Edge Tab 12.7 mm, A4 Short Edge Tab 15.0 mm, Letter Long Edge Tab, Letter Short Edge Tab

Select a paper size for a tab.

Number of Tabs

1 to 15

Set a number of tabs.

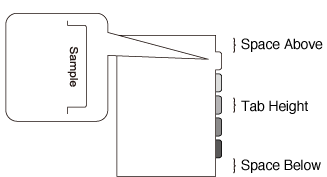

Space Above

0 mm to 50 mm

Input the value for [Space Above].

Tab Height

2.5 mm to 297 mm (For A4 Long Edge Tab)

2.5 mm to 210.0 mm (For A4 Short Edge Tab)

2.5 mm to 279.4 mm (For Letter Long Edge Tab)

2.5 mm to 215.9 mm (For Letter Short Edge Tab)

Input the value for [Tab Height].

The maximum value for the height is the value when Space Above and Space Below are 0 mm. The maximum value that can be specified changes according to the values of Space Above and Space Below.

Space Below

0 mm to 50 mm

Input the value for [Space Below].

Font Name

-

Set a font for text on a tab.

Font Style

Bold, Italic, point (4 pt to 72 pt)

Set a style for text on a tab.

Line Spacing

-

Set a spacing between text on a tab.

Orientation

Normal, Flipped, Horizontal, Vertical

Set a direction of text on a tab.

Vertical Position

Top, Center, Bottom

Set a vertical position of text on a tab.

Horizontal Position

-10.0 mm to 10.0 mm

Set a horizontal position of text on a tab.

By default, the text on a tab is placed at the center to the tab.

Set

No Setting, Sets/Number of tabs

Set the tab to display. This setting is available when Tabs is specified.

Tab Position

No Setting, Tab position/Total (1/1 to 15/15)

Set the position of a tab to display.
