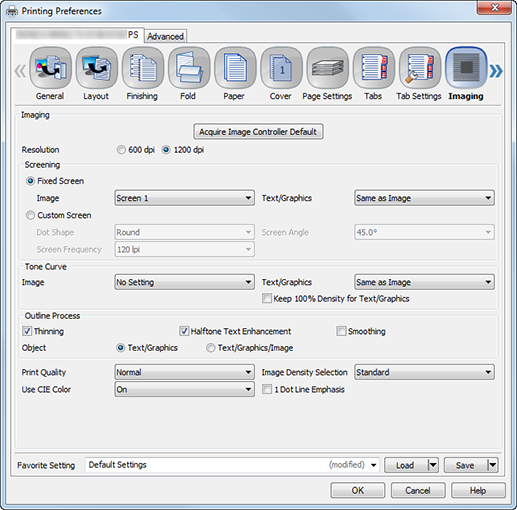

Imaging Screen

Acquire Image Controller Default

-

Acquires default information of the image controller.

Resolution

600 dpi, 1200 dpi

Selects a resolution.

• When 1200 dpi is selected, the image quality increases. However, printing may take longer.

Fixed Screen

Image, Text/Graphics

The quality adjustments (*) set from the touch panel of the main body can be reflected to each of Image and Text/Graphics.

• If the screen name set from the touch panel of the main body is inconsistent, click the Acquire Device Information under the Configure tab to update the information.

• When Stochastic is selected, the settings for both Image and Text/Graphics will be the same.

Custom Screen

Dot Shape, Screen Frequency, Screen Angle

Select Dot Shape to set the shape of a print dot. For details about the dot shape, refer to the printer driver help.

Select Screen Frequency to set the number of halftone dots per inch. The unit is lpi (line per inch). Although the resolution increases as the number is larger, the quality of gradation becomes poorer. The default setting is 120 lpi. Select Screen Angle to set the angle against the vertical axis of each color to prevent moire.

Tone Curve

Image, Text/Graphics

Select the tone curve acquired from the image controller. You can specify the tone curve settings using the Color Centro application.

Keep 100% Density for Text/Graphics

Off, On

Specify this option to output texts and graphics objects with the highest density of this machine regardless of the tone curve setting.

Thinning

Off, On

Select this check box to control the boldness of the text or line images. This setting also has an effect on white characters on a colored background. This setting is available when Fixed Screen is selected.

Halftone Text Enhancement

Off, On

Setting the Halftone Text Enhancement function to On clearly prints the outline of a gray text or figure. This setting is available when Fixed Screen is selected.

Smoothing

Off, On

When turned on, you can smoothly print the outline of text with density of 100%, such as K=100%, and line images. The Smoothing setting is available when Fixed Screen is selected.

Object

Text/Graphics, Text/Graphics/Image

Select the type of Object when any setting of Outline Process has been set.

Print Quality

Normal, Draft Print, Toner Save

Specify the print density.

Draft Print corresponds with Image Density Selection - -4 and Toner Print corresponds with -2.

Image Density Selection

-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, Standard, +1

Select the print density. Move the slider toward plus to deepen the density and move the slider toward minus to lighten the density.

Use CIE Color

Off, On, Image Controller Default

Uses a CIE color space. When Use CIE Color is turned on, the printing is processed via the color space defined by CIE, an international commission on illumination. Although the quality in reproducing the gradation will be better than usual, it may require more time to print.

1 Dot Line Emphasis

Off, On

Turn 1 Dot Line Emphasis on to emphasis an ultrafine line.
