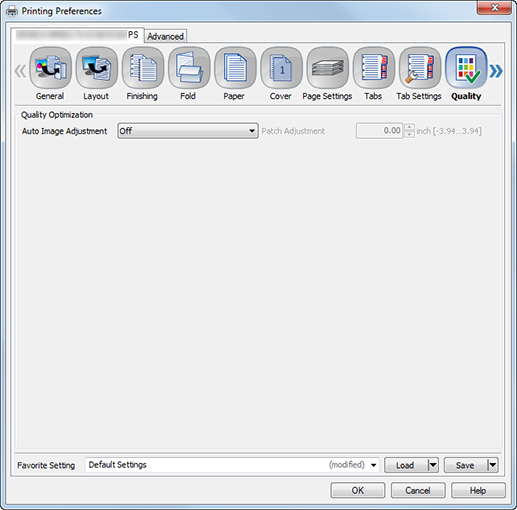

Quality Screen

On the Configure tab, if Integrated Color Care Unit is installed, the Quality tab opens.

Function	Option	Description
Auto Image Adjustment	Off, Position/Gradation, Position	Performs the automatic image adjustment depending on the setting you selected when printing.
Patch Adjustment	-100.0 mm to 100.0 mm / -3.94" to 3.94"	You can adjust the patch position outside paper if the positive value is specified and inside paper if the negative value is specified (the patch position moves in the crosswise direction). This item is available when Position/Gradation is selected in Auto Image Adjustment.

Function

Option

Description

Auto Image Adjustment

Off, Position/Gradation, Position

Performs the automatic image adjustment depending on the setting you selected when printing.

Patch Adjustment

-100.0 mm to 100.0 mm / -3.94" to 3.94"

You can adjust the patch position outside paper if the positive value is specified and inside paper if the negative value is specified (the patch position moves in the crosswise direction).

This item is available when Position/Gradation is selected in Auto Image Adjustment.
