Maximum Density Adjustment

Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

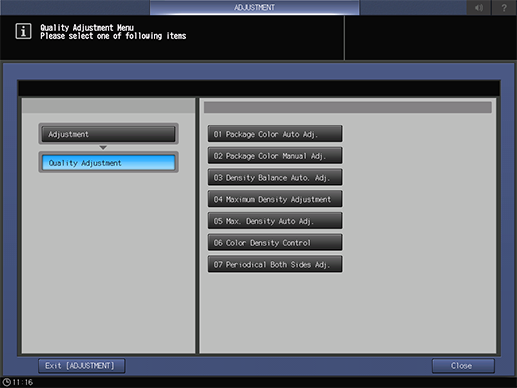

Press Quality Adjustment and Maximum Density Adjustment in sequence.

Press Print Mode.

Select the paper tray used for adjustment, then press Start on the control panel.

Charts with screen 1 (Dot120 recommended) applied are output.

Charts are processed by colorimetry, and delivered to the output tray.

When Integrated Color Care Unit IQ-501 and Relay Unit RU-518 is not mounted, print charts using the pre-specified paper, and measure the density using your spectrophotometer. Then, manually repeat adjustments until the target result is obtained. After adjustment, proceed to step 7.

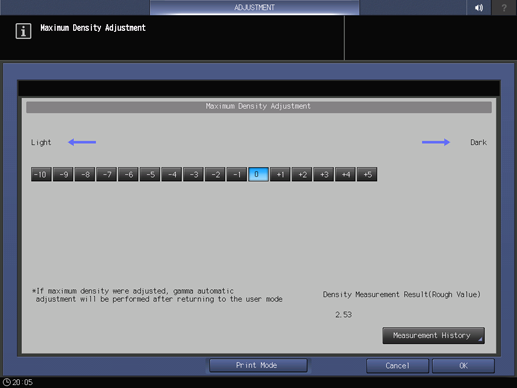

After outputting the charts, the screen returns to the Maximum Density Adjustment screen and the measurement result is displayed under Density Measurement Result (Rough Value) in the lower right of the screen.

• supplementary explanationPress Measurement History to view the measurement history (up to 30 results).

If you press Switch Display on the Maximum Density Measurement History screen to change the items in the history list. (Display 1: Measurement Date and Measured Value, Display 2: Paper Type and Set Value.)

Change the adjustment result depending on the measurement result.

• supplementary explanationThe measurement result is lower than the desired density.: Change the adjustment value to the positive (+) side.

• supplementary explanationThe measurement result is higher than the desired density.: Change the adjustment value to the negative (-) side.

Repeat steps 3 to 6 until the desired result is obtained.

Press OK to complete the setting.

• supplementary explanationTo cancel the change, press Cancel. In either case, the screen returns to the Quality Adjustment Menu screen.
