2-Side Slit Finishing Adj.

Adjust the 2-side slitting speed of Trimmer Unit TU-503 mounted on Saddle Stitcher SD-513 to reduce naps or curvature of the slitting part.

1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and 2-Side Slit Finishing Adj. in sequence.

3. Press Print Mode.

4. Load A3 short edge feed or 11 17 short edge feed paper in any tray, and select the button of the tray.

5. Press Start on the control panel.

   A sample pattern will be output.

6. Check the slit part for skewing or napping.

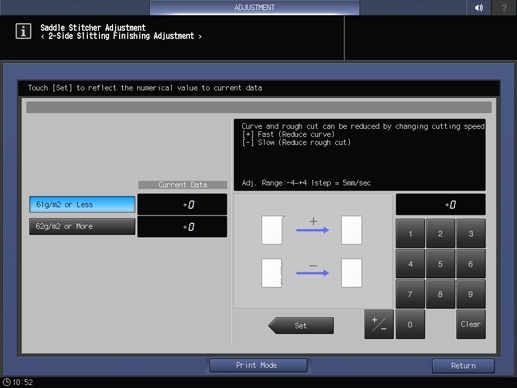

7. If any adjustment is required, press Exit PrintMode to return to the 2-Side Slitting Finishing Adjustment screen.

8. If any adjustment is required, use the touch panel keypad to enter the set value.

   Adj. Range: -4~+4 1 step = 5 mm/sec

   [-] Slow (Reduct rough cut) [+] Fast (Reduce curve)

   • supplementary explanationUse +/- to specify the value to be positive or negative.

9. Press Set to change the Current Value.

10. Repeat steps 3 to 9 until the desired result is obtained.

11. Press Return.

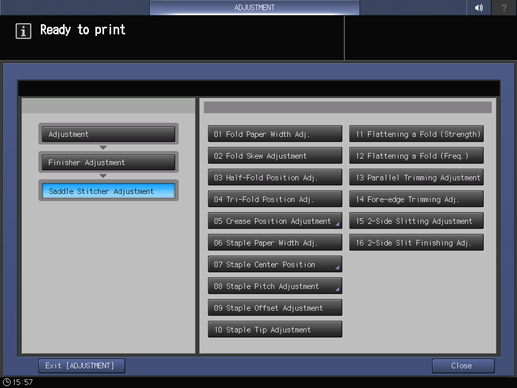

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
